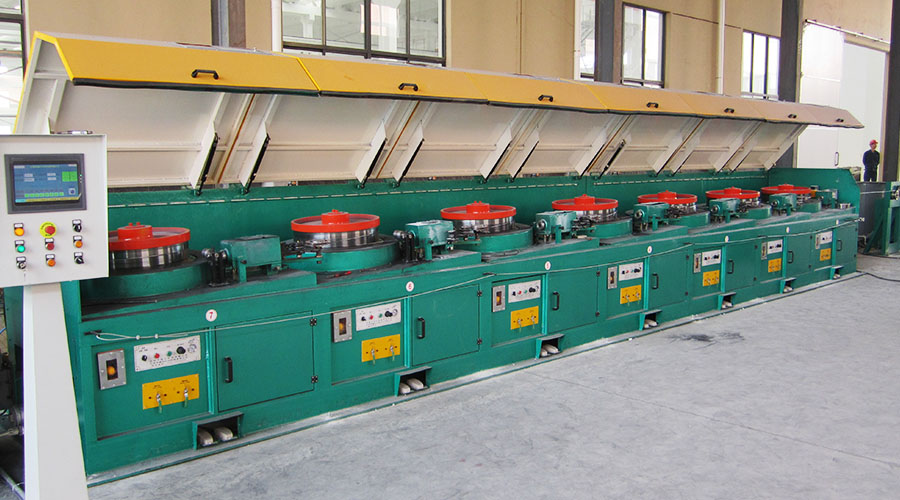

Wire drawing is a process of reducing the cross-sectional area of a metal wire by pulling it through a series of dies. The speed of the wire drawing machine is an important factor that affects the quality and productivity of the wire. In this blog post, we will discuss how to calculate the speed of the wire drawing machine and what factors influence it.
The speed of the wire drawing machine is determined by the following formula:
v = (πdN)/60
where v is the speed in meters per second, d is the diameter of the capstan in meters, N is the rotational speed of the capstan in revolutions per minute, and 60 is a conversion factor from minutes to seconds.
The diameter of the capstan is usually fixed by the design of the machine, but it can vary slightly due to wear and tear. The rotational speed of the capstan can be adjusted by changing the frequency of the electric motor that drives it. Therefore, to control the speed of the wire drawing machine, we need to adjust the frequency of the electric motor.
However, there are some other factors that affect the speed of the wire drawing machine, such as:
- The reduction ratio: This is the ratio of the initial diameter of the wire to the final diameter after passing through a die. The higher the reduction ratio, the higher the speed required to maintain a constant volume flow rate of the metal.
- The friction coefficient: This is a measure of how much resistance the wire encounters when passing through a die. The higher the friction coefficient, the lower the speed required to overcome it.
- The temperature: This affects both the reduction ratio and the friction coefficient. The higher the temperature, the lower the reduction ratio and the friction coefficient, and vice versa.
- The lubrication: This reduces the friction coefficient and increases the speed of the wire drawing machine. The type and amount of lubricant used depend on the material and size of the wire.
To optimize the speed of the wire drawing machine, we need to consider all these factors and find a balance between them. A good practice is to start with a low speed and gradually increase it until we reach the desired quality and productivity level. We also need to monitor and adjust the speed according to changes in temperature, lubrication, and other conditions.
