Z94-2C NAIL MAKING MACHINE
- High Efficiency: Fully automatic nail machines with output up to 350 nails per minute.
- Wide Range: Z94-2C nail making machine support nail diameters 1.5~2.8mm and lengths 15~55mm.
- Stable and continuous production performance.
- Precision nail-cutting technology for sharp, uniform nail points.
- Compatible with various nail sizes and specifications.
Z94-2C Nail Making Machine | High-Speed Automatic Common Nail Machine (1.5–2.8mm)

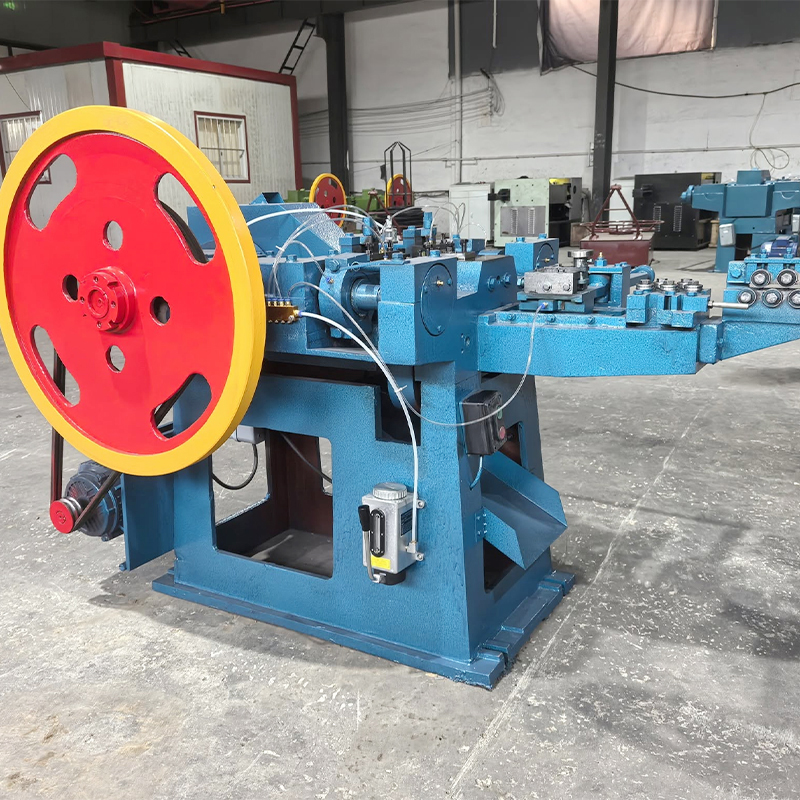

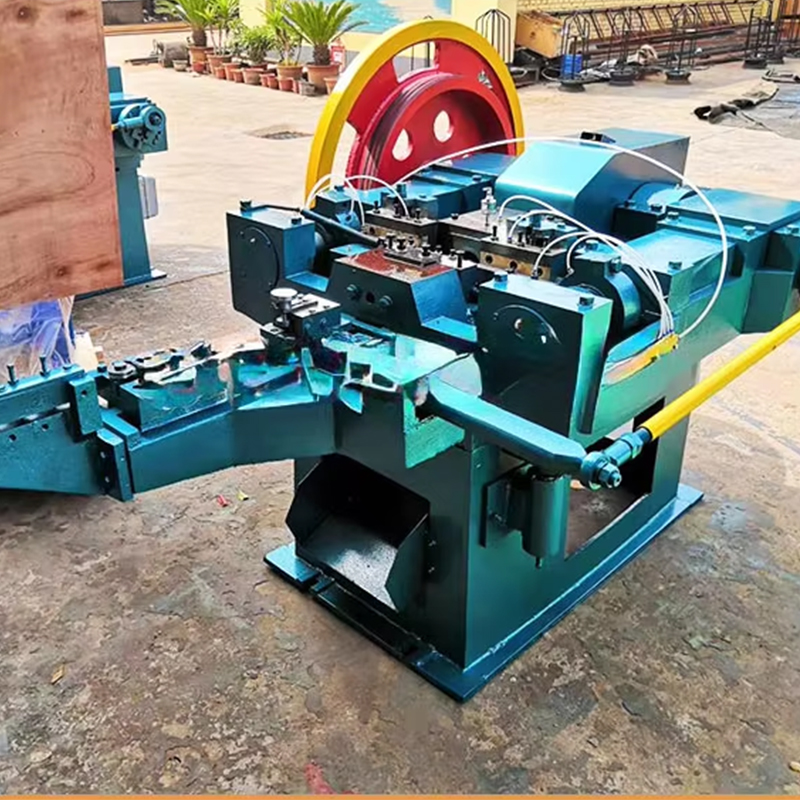

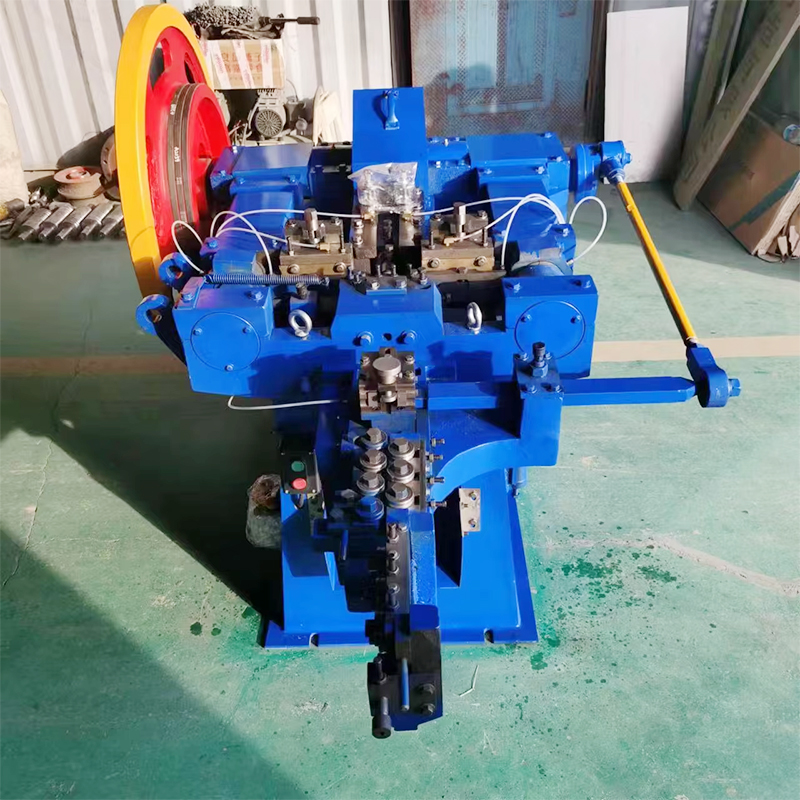

The Z94-2C Nail Making Machine is a high-speed, fully automatic wire nail production machine engineered by YF Metal Tech for manufacturers who need consistent output, tight tolerances, and low downtime. Built to convert coiled steel wire directly into finished common nails, the Z94-2C handles a wire diameter range of 1.5mm to 2.8mm and produces nails from 15mm to 55mm in length, making it a versatile choice for factories producing standard construction and general-purpose nails.
With a production speed of up to 350 pieces per minute and a 2.2kW motor, the Z94-2C delivers reliable, energy-efficient output for small-to-mid-scale nail manufacturing lines. Its compact footprint (1650×1150×1000mm) and 1000kg machine weight make it easy to integrate into existing production layouts without requiring major facility upgrades.
As a trusted nail making machine manufacturer with years of experience exporting equipment to construction, hardware, and fastener industries worldwide, YF Metal Tech backs every Z94-2C with engineering support, spare parts availability, and installation guidance.
Z94-2C NAIL MAKING MACHINE Machine Features
- High-Speed Plunger Design: The plunger-type mechanism enables high-speed operation with reduced noise and vibration for smooth, reliable performance.
- Compact & User-Friendly Design: Advanced machine design features a compact structure, clean appearance, easy operation, and enhanced operator safety.
- Reliable Lubrication System: The bearing and oil-pipe lubrication system ensures smooth operation and reliable performance during continuous production.
- Energy-Efficient & Stable Operation: Designed for low energy consumption, stable performance, easy installation, and convenient movement, making it suitable for various production environments.
- Wide Range of Applications: Common nails produced by the machine are widely used in construction, woodworking, furniture repair, packaging, decoration, and general fastening applications, including softwood, hardwood, bamboo products, plastic materials, and wooden cases.
Full Automatic Z94-2C Nail Making Machine Technical Specifications
| Parameter | Value |
|---|---|
| Model | Z94-2C Nail Making Machine |
| Max wire diameter | 2.8mm |
| Min wire diameter | 1.5mm |
| Max nail length | 55mm |
| Min nail length | 15mm |
| Production speed | 350 pcs/min |
| Motor power | 2.2kW |
| Machine dimensions | 1650×1150×1000mm |
| Machine weight | 1000kg |
| Packing quantity | 1 set |
Why Choose the Z94-2C Nail Making Machine
1. Precision Nail Cutting for Consistent Quality

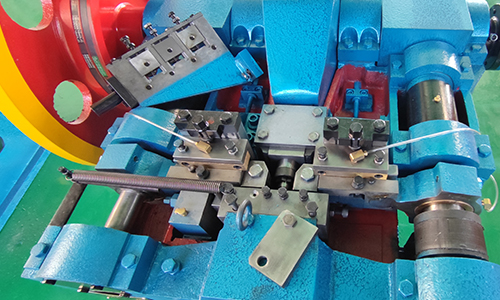

The Z94-2C uses a dual-side cam-driven cutter system that moves back and forth to shear wire cleanly and consistently. This design keeps nail points straight, sharp, and uniform across every batch, reducing rejects and rework on the production floor. For extended service life, YF Metal Tech recommends tungsten carbide cutter blades, which resist wear even under continuous high-speed operation.
2. Wide Diameter and Length Range in One Machine
Covering wire from 1.5mm to 2.8mm and nail lengths from 15mm to 55mm, the Z94-2C is flexible enough to run multiple common nail specifications without needing a separate machine for each size. This flexibility helps manufacturers respond quickly to changing order requirements.
3. High-Speed, Energy-Efficient Production
Running at up to 350 pieces per minute on a 2.2kW motor, the Z94-2C balances output speed with power consumption, helping keep operating costs predictable for factories running multiple shifts.
4. Compact, Space-Saving Footprint
At 1650×1150×1000mm and 1000kg, the Z94-2C fits into tighter production layouts than larger high-speed nail machines, making it a practical option for growing workshops and mid-sized factories that don’t yet need heavy-duty industrial-scale equipment.
5. Built for Low-Maintenance, Long-Term Operation
Smooth wire feeding, regular lubrication points, and easily accessible wear parts mean the Z94-2C is designed to stay in production with minimal downtime. Routine maintenance and timely cutter replacement keep the machine performing at rated speed over its service life.
How the Z94-2C Nail Making Machine Works?

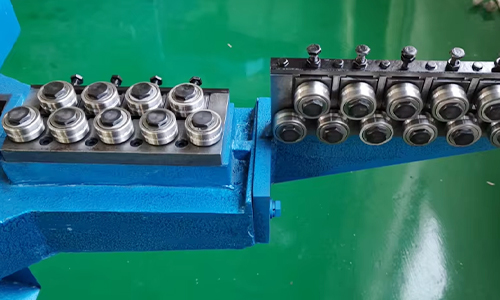

- Wire Feeding – Coiled steel wire is fed into the machine through a straightening and feeding mechanism at a controlled, consistent rate.
- Header Forming – The wire is gripped and struck to form the nail head to the required shape and size.

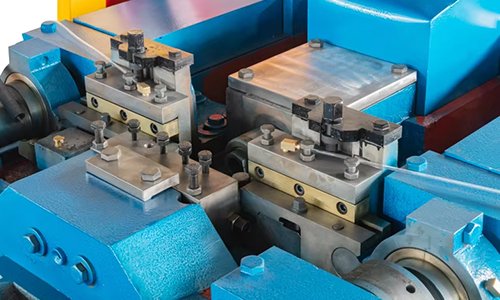

- Precision Cutting – The dual-side cam-driven cutter shears the wire to the set length, forming a sharp, uniform point.
- Nail Ejection – Finished nails are ejected and collected, ready for the next processing stage (such as polishing, coating, or packing).
Applications of Z94-2C Nail Making Machine
The Z94-2C Nail Making Machine is suitable for producing standard common nails used across multiple industries:
- Construction – General-purpose nails for woodwork, framing, and building projects
- Furniture Manufacturing – Nails for assembly, joinery, and finishing
- Packaging – Nails for crates, pallets, and wooden packaging
- Hardware Retail & Distribution – Standard nail products for hardware stores and wholesale supply
Complete Nail Production Line
Steel Wire → Wire Drawing → Nail Making → Nail Polishing → Packing
YF Metal Tech provides complete equipment solutions for steel wire nail production, including:
- Wire Drawing Machine
- Nail Making Machine
- Nail Polishing Machine
- Wire Pay-off & Take-up Equipment
- Auxiliary Equipment
Tell us your raw wire diameter, finished nail diameter, nail length and required output. Our engineers can recommend a suitable production line.
Technical Support & After-Sales
YF Metal Tech provides installation guidance, operator training references, and spare parts support for the Z94-2C Nail Making Machine. Our engineering team can also advise on wire material selection, cutter maintenance schedules, and machine setup to help you reach rated production speed faster.
Need a Z94-2C Nail Making Machine?
Get a Quote for the Z94-2C Nail Making Machine. Contact YF Metal Tech today for pricing, lead times, and technical specifications tailored to your nail production requirements.
Frequently Asked Questions
1. What wire diameter range does the Z94-2C support?
The Z94-2C processes steel wire from 1.5mm to 2.8mm in diameter.
2. What is the maximum production speed of the Z94-2C?
The Z94-2C can produce up to 350 nails per minute.
3. What nail lengths can the Z94-2C produce?
The machine produces nails ranging from 15mm to 55mm in length.
4. How much power does the Z94-2C require?
The Z94-2C is equipped with a 2.2kW motor.
5. What is included when I order one set?
Each order includes 1 complete Z94-2C Nail Making Machine unit. Contact YF Metal Tech for details on auxiliary equipment such as wire drawing machines or polishing machines.
