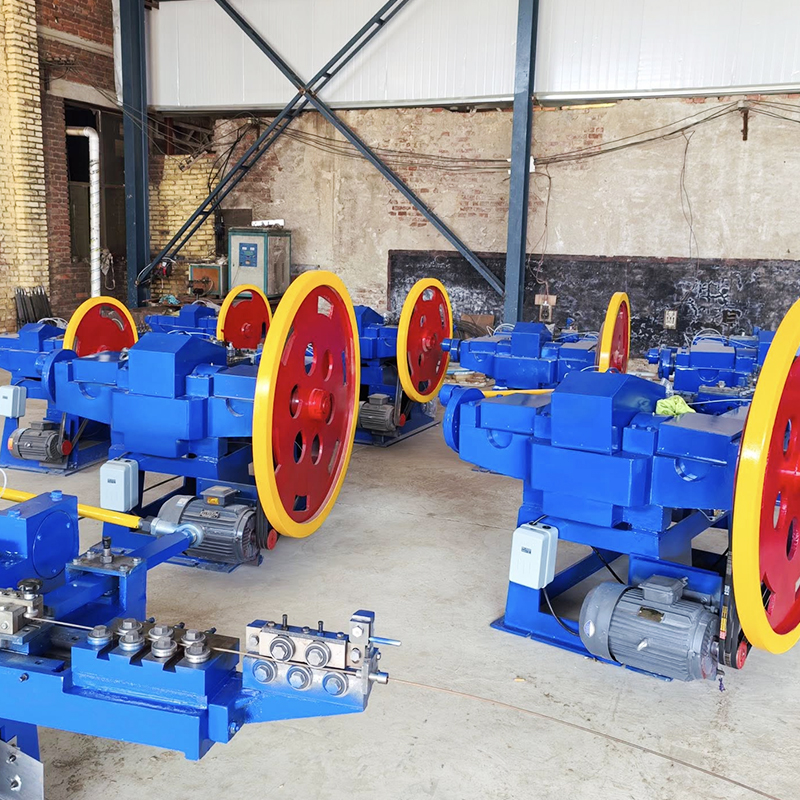

Z94 1c Nail Making Machine

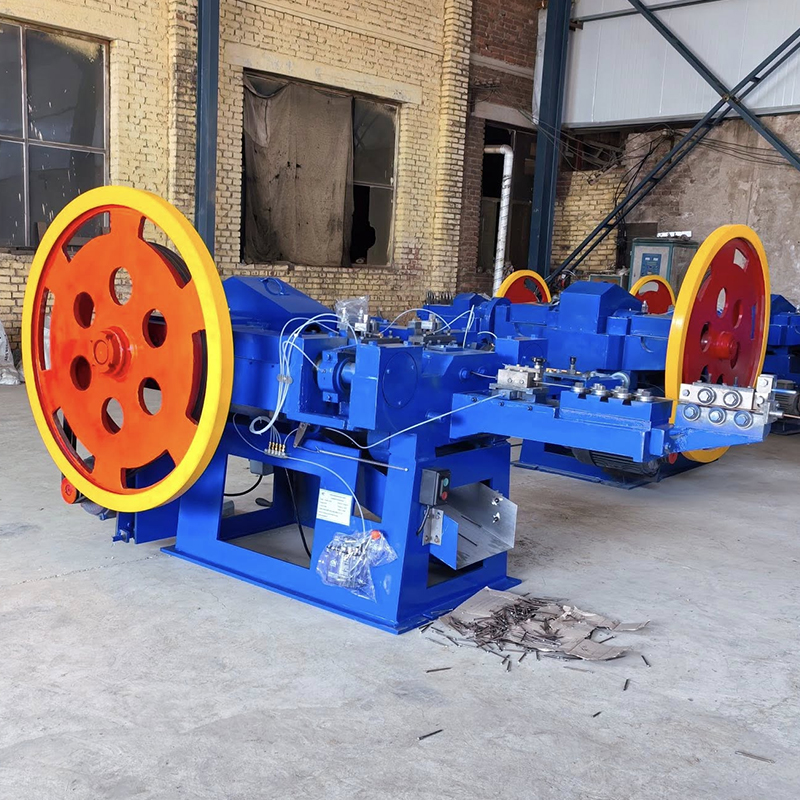

Blue Industrial Metalworking Machine with Large Red and yellow Flywheels in a Workshop Metal Shavings Scattered on the Floor Behind It

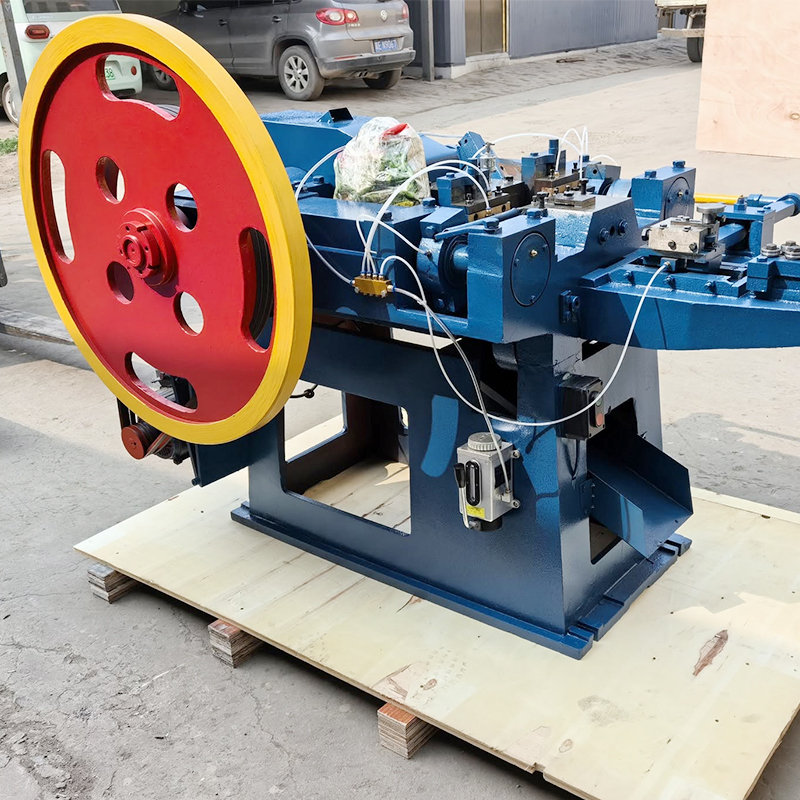

Wire Nail Making Machine

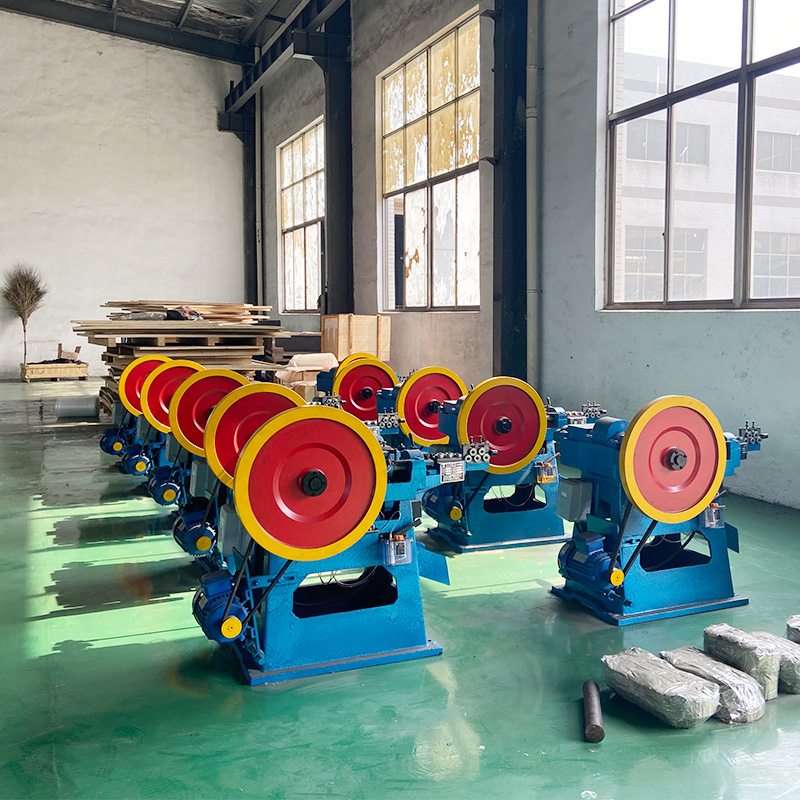

Row of Blue Industrial Grinding Machines with Red and Yellow Wheels Lined Up in a Workshop Green Floor Large Windows and Stacks of Materials in the Background

Z94-1C NAIL MAKING MACHINE

  1. High Efficiency: Fully automatic nail machines with output up to 450 nails per minute.
  2. Wide Range: Z94-1C nail making machine support nail diameters 0.8~1.8mm and lengths 6~38mm.
  3. Stable and continuous production performance
  4. Precision nail-cutting technology for sharp, uniform nail points
  5. Compatible with various nail sizes and specifications
Facebook Youtube Linkedin Whatsapp
Send Inquiry

Z94-1C Automatic Wire Nail Making Machine

The Z94-1C wire nail making machine is a compact and efficient solution for producing small steel wire nails. It is designed for continuous automatic production, combining wire straightening, feeding, nail-head forming and cutting in one machine.

With a production capacity of up to 450 nails per minute, the Z94-1C is suitable for manufacturers looking for stable output, consistent nail dimensions and efficient production of small-size nails.

YF Metal Tech can also provide supporting wire drawing and nail finishing equipment to build a complete nail production line according to your wire material, nail size and production requirements.

Z94-1C NAIL MAKING MACHINE Machine Feature

  1. High-Speed Plunger Design: The plunger-type mechanism enables high-speed operation with reduced noise and vibration for smooth, reliable performance.
  2. Compact & User-Friendly Design: Advanced machine design features a compact structure, clean appearance, easy operation, and enhanced operator safety.
  3. Reliable Lubrication System: The bearing and oil-pipe lubrication system ensures smooth operation and reliable performance during continuous production.
  4. Energy-Efficient & Stable Operation: Designed for low energy consumption, stable performance, easy installation, and convenient movement, making it suitable for various production environments.
  5. Wide Range of Applications: Common nails produced by the machine are widely used in construction, woodworking, furniture repair, packaging, decoration, and general fastening applications, including softwood, hardwood, bamboo products, plastic materials, and wooden cases.

Full Automatic Z94-1C Nail Making Machine Technical Specifications

(Custom configurations available.)
Z94-1C NAIL MAKING MACHINE
Model Parameter
Max dia 1.8
Min dia 0.8
Max length 38
Min length 6
Speed 450pcs/min
Motor power 1.5kw
Size 1350*950*1000mm
Weight 550kg
Quantity/ 1

How Does the Z94-1C Nail Making Machine Work?

Cold Heading Cutting → Wire Feeding → Wire Straightening → Nail Head Forming → Cutting → Finished Nails

1. Cold Heading Cutting Device
Use the pier head to strike the clamped steel wire to obtain the required nail head, while squeezing out the nail tip and cutting it.
2. Wire Feeding
Steel wire is continuously fed into the nail making machine.
3. Wire Straightening
The wire is straightened to ensure stable feeding and consistent nail production.
4. Nail Head Forming
The machine forms the nail head through precision mechanical forming.
5. Nail Cutting
The wire is cut to the preset nail length and forms the nail point.
6. Finished Nail Collection

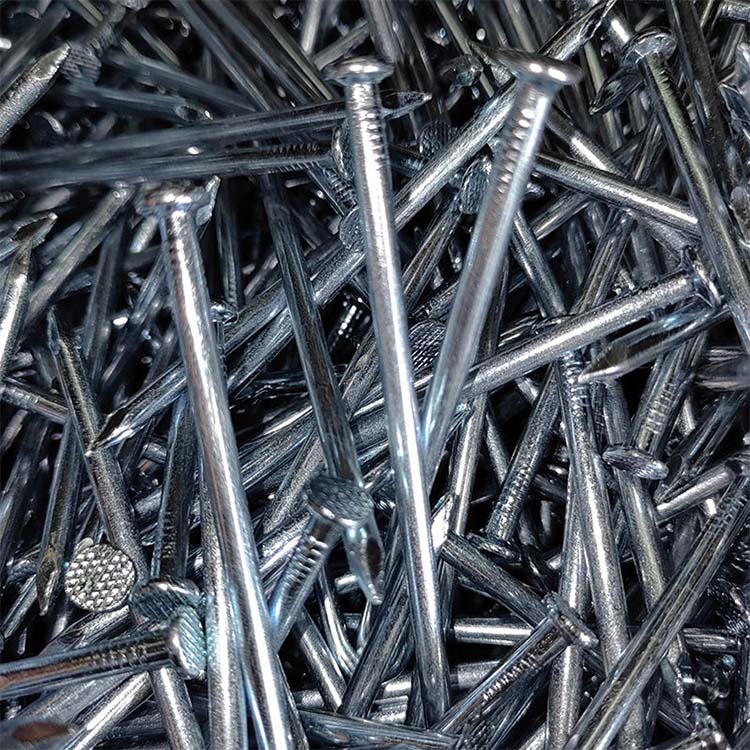

Finished nails are discharged for collection, polishing or further processing.

Applications of Z94-1C Nail Making Machine

The Z94-1C is mainly designed for the production of small-size wire nails used in:

  • Furniture manufacturing
  • Woodworking
  • Light construction
  • Packaging
  • General hardware production
  • Small fastener manufacturing

Complete Nail Production Line

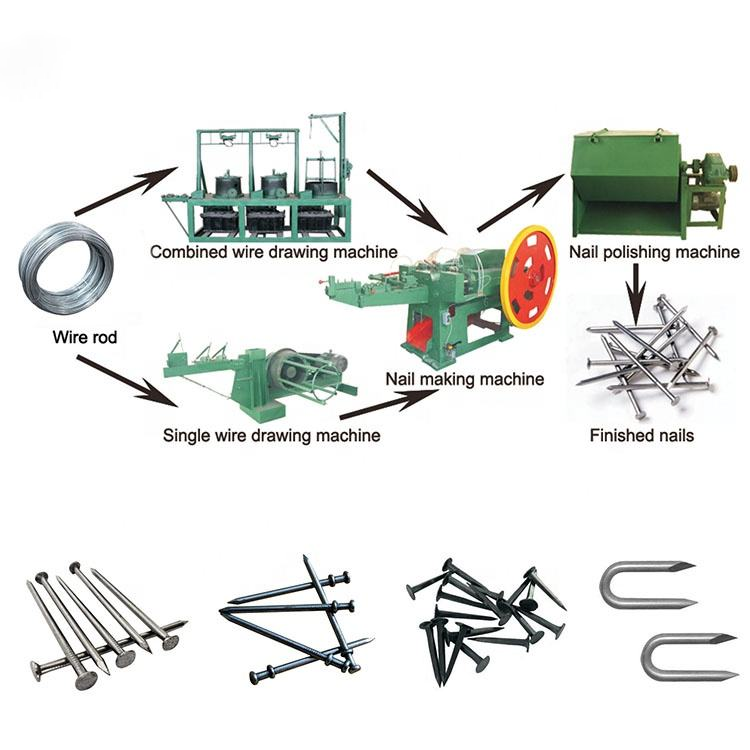

Steel Wire → Wire Drawing → Nail Making → Nail Polishing → Packing

YF Metal Tech provides complete equipment solutions for steel wire nail production, including:

  • Wire Drawing Machine
  • Nail Making Machine
  • Nail Polishing Machine
  • Wire Pay-off & Take-up Equipment
  • Auxiliary Equipment

Tell us your raw wire diameter, finished nail diameter, nail length and required output. Our engineers can recommend a suitable production line.

Need a Z94-1C Nail Making Machine?

Tell us your nail diameter, nail length and required production capacity. YF Metal Tech will recommend the right machine configuration for your production needs.

Request a Fast Quote

FAQ – Z94-1C Nail Making Machine

1. What size nails can the Z94-1C produce?

The Z94-1C is designed for small wire nails with diameters of approximately 0.9–1.6 mm and lengths of 9–25 mm.

2. What is the production speed of the Z94-1C?

The designed production capacity is up to 450 nails per minute, depending on nail specifications and operating conditions.

3. What is the motor power of the Z94-1C?

The standard motor power is 1.5 kW.

4. What type of wire is used for nail making?

The machine is mainly designed for suitable steel wire used in small nail production. The recommended wire specification should be confirmed according to the finished nail size.

5. Can YF Metal Tech provide a complete nail production line?

Yes. YF Metal Tech can provide wire drawing machines, nail making machines and auxiliary equipment to build a complete nail manufacturing line.

6. Can the Z94-1C be customized?

Yes. YF Metal Tech can discuss machine configuration and supporting equipment according to the customer’s nail specifications, raw material and production requirements.
