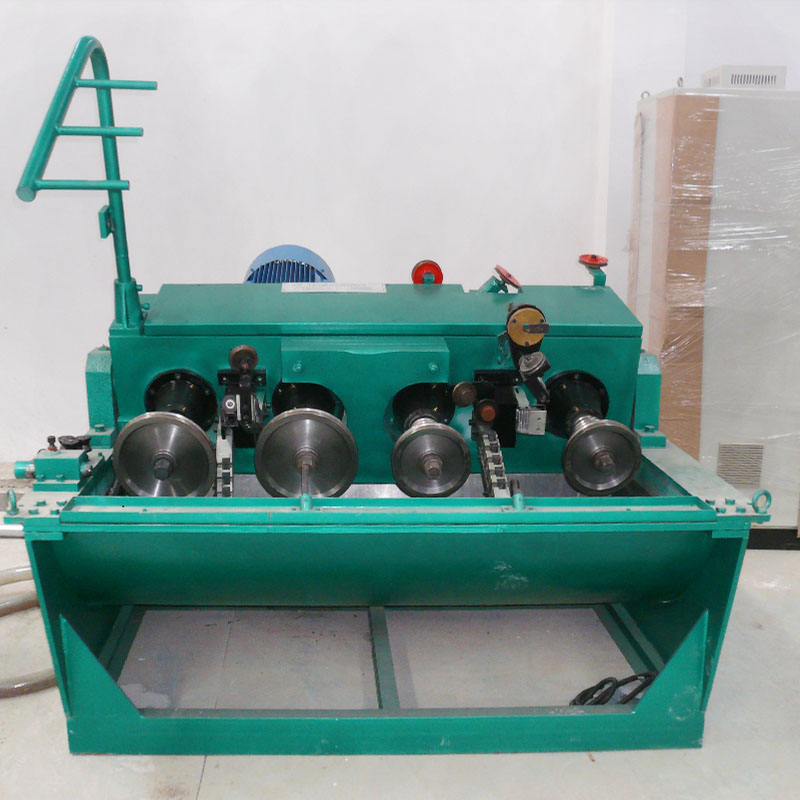

Wet Wire Drawing Machine
Wet Wire Drawing Machine
1. The equipment is mainly composed of the main reduction box, gears, reels, water tanks, starting frame and electrical control system, etc.
2. A water cooling circulation system is installed inside the equipment
3. Can be used to produce binding wire, galvanized wire, and stainless steel wire.
4. It is suitable for drawing low, medium, and high carbon steel wires, and can also be used for drawing copper, aluminum, and other non-ferrous metal wires.

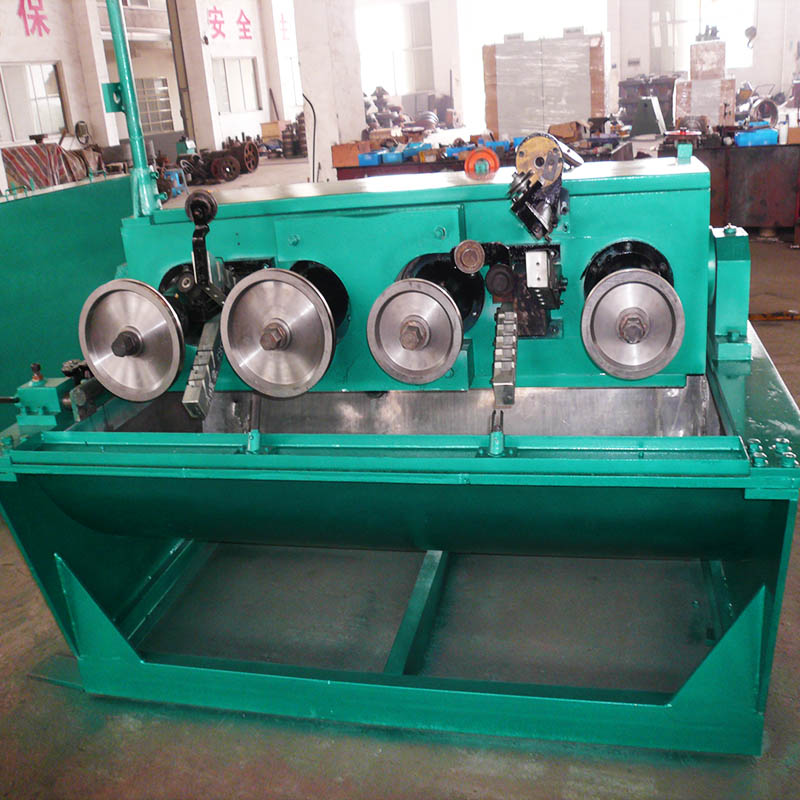

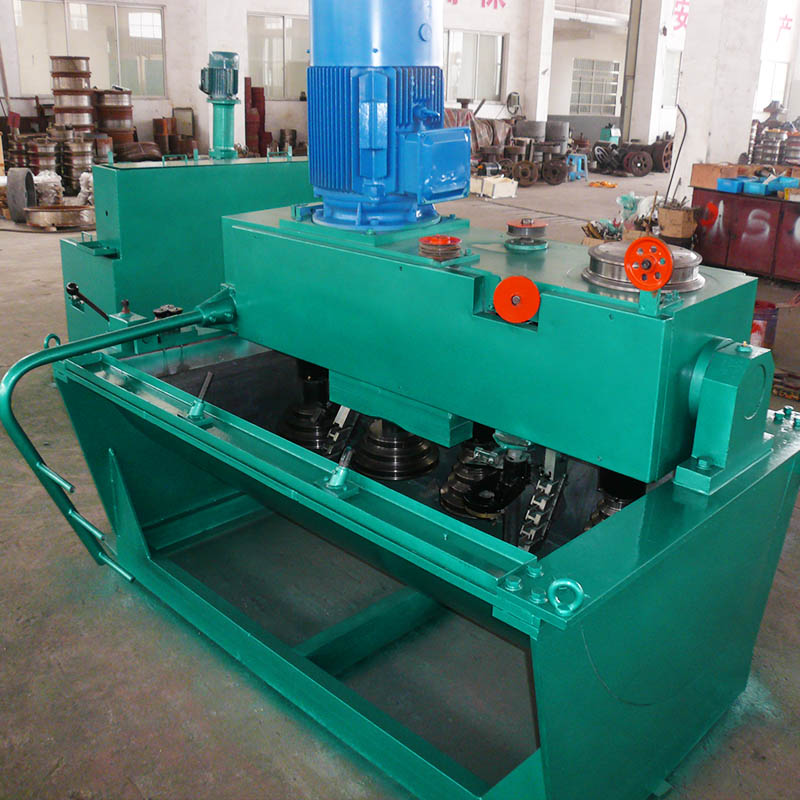

Wet Wire Drawing Machine
Wet Wire Drawing Machine Machine Features
1. The Wet Wire Drawing Machine is mainly composed of the main reduction box, gears, reels, water tanks, starting frame and electrical control system, etc.
2. A water cooling circulation system is installed inside the equipment
3. Each wire drawing reel is rotated by a Y series motor through a gear coupling and is decelerated by two-stage cylindrical gears with different speed ratios so that the reel rotates and works. The wire drawing reel is vertical and installed on the box on the cover, The gears are lubricated with oil.
4. Can be used to produce binding wire, galvanized wire, and stainless steel wire.
5. It is suitable for drawing low, medium, and high carbon steel wires, and can also be used for drawing copper, aluminum, and other non-ferrous metal wires.
Wet Wire Drawing Machine Technical Parameters
Model | LT-15/350 |
Roll Diameter | 350mm |
Drawing Passes | 15dies |
Inlet Diameter | 2mm-2.4mm |
Outlet Diameter | 0.6mm-0.8mm |
Total Compression Ratio | 89.10% |
Average Partial Compression | 15% |
Drawing Speed | 7m/s |
Equipped Motor Power | 30-45kw |
Dimensions | 2600*1300*1350mm |
Weight | 2650kg |
Leading Series Die Pointing Machine: 1. This equipment is used for wire rolling of various wire diameters and different materials | |
Type | Pointing rolling range |
FZ-3 | Φ3-Φ0.8mm |
Butt Welding Machine: This equipment is used for welding wire | |||||
Type | The welding range | power | |||
UN-1-4 | copper | Φ0.8-Φ3mm | iron | Φ1-Φ4mm | 3kw |
Unloading machine: Unload the drawn wire from the wire drawing machine and place it on the pay-off rack smoothly. |
Pay-off frame: The wire unloading machine unloads the drawn iron wire on the wire drawing machine to the pay-off frame. |
I-wheel take-up machine The equipment is connected to the wet wire drawing machine, which can continuously unload the drawn iron wire from the wet wire drawing machine. |
