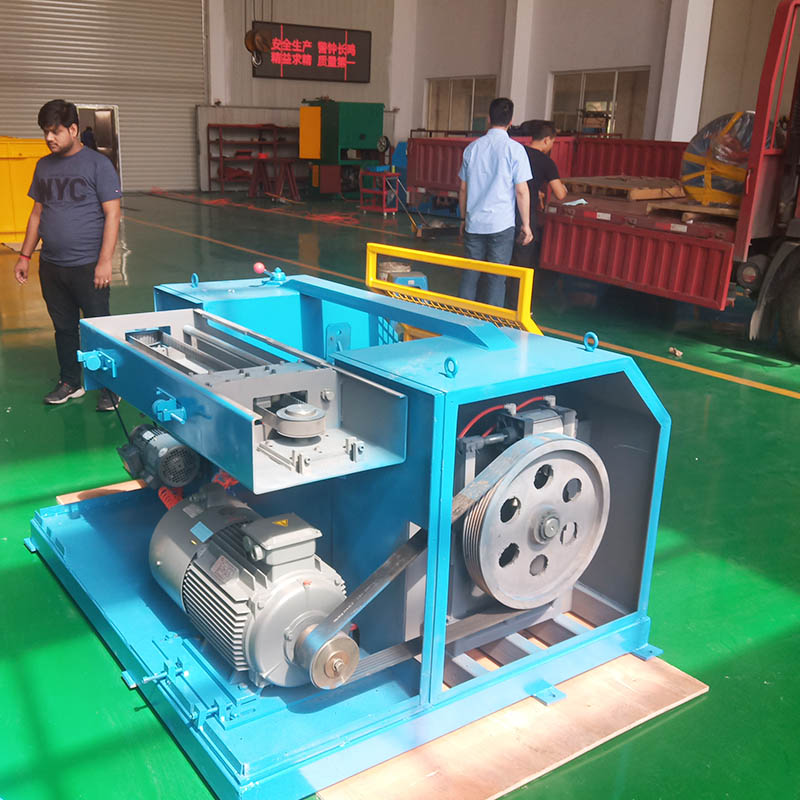

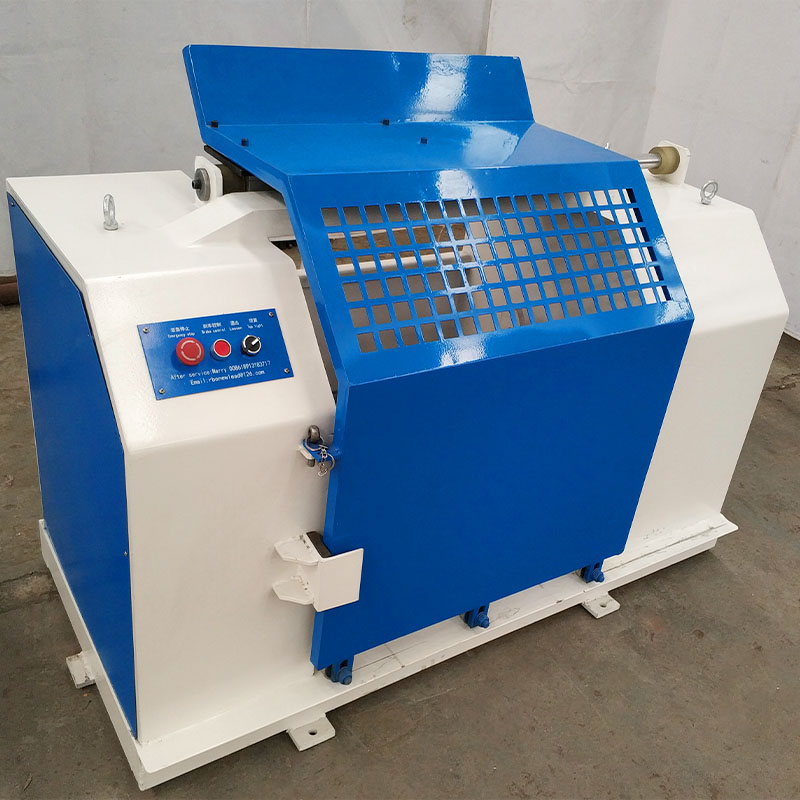

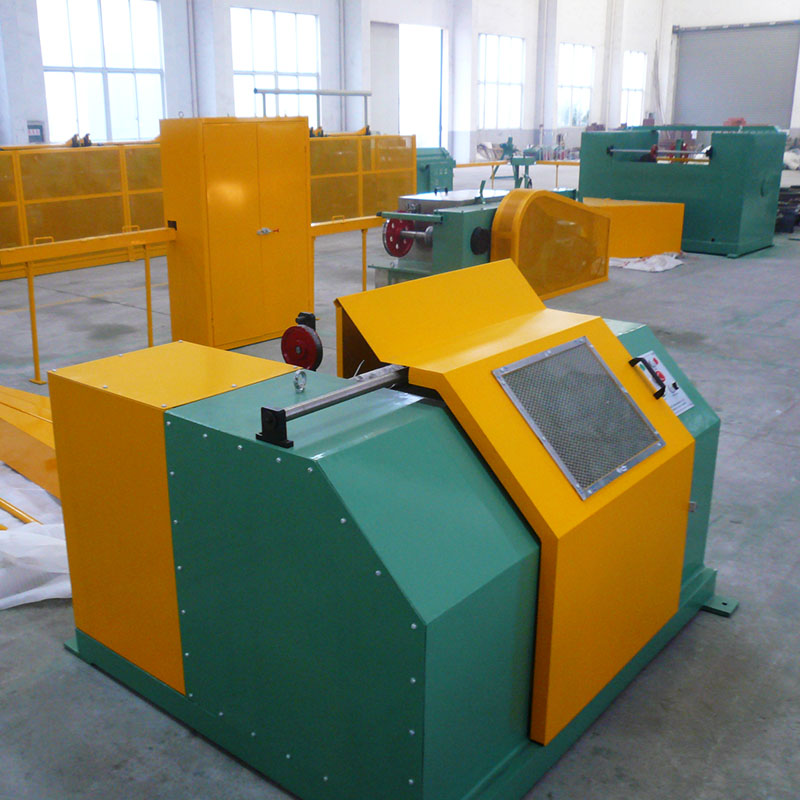

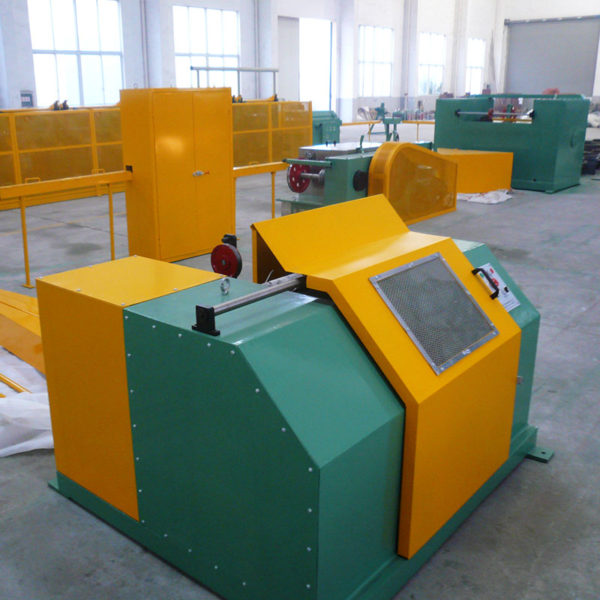

I-wheel Take-up Machine

I-wheel Take-up Machine

The I-wheel Take-up Machine manufactured by YF Metal Tech has a complete range of models and advanced technical parameters. The I-shaped wheel take-up machine and the steel bar take-up machine can be used for the coiling of metal wire components.

The I-wheel take-up machine can automatically adjust to keep the winding tension constant during the take-up process.

The I-wheel take-up machine can adjust the wire walking pitch according to the wire diameter so that the speed of the wire take-up can be coordinated with the previous process.

The steel bar wires of the I-wheel take-up machine are tightly wound, and the appearance of the wires is neat and beautiful.



Production Capacity of I-wheel take-up machine



The take-up machine can bear 650kg, 1000kg, and 2000kg, and the coiling of individual finished metal wires often uses small I-shaped wheels.

The I-wheel take-up machine manufactured by YF Metal Tech has a complete range of models and advanced technical parameters.

The I-shaped wheel take-up machine and the steel bar take-up machine can be used for the coiling of metal wire components.

The I-wheel take-up machine can automatically adjust to keep the winding tension constant during the take-up process.

The I-wheel take-up machine can adjust the wire walking pitch according to the wire diameter so that the speed of the wire take-up can be coordinated with the previous process.

The steel bar wires of the I-wheel take-up machine are tightly wound, and the appearance of the wires is neat and beautiful.

Production capacity of I-wheel take-up machine

The take-up machine can bear 650kg, 1000kg, and 2000kg, and the coiling of individual finished metal wires often uses small I-shaped wheels.



Technical Parameters



Item	Unit	Model
		GS400	GS800、GS630	GS1150
Take-up diameter	mm	0.3-1.5	3.5	10-4
Take-up speed	m/min	580	400	400
Equipped with motor	kw	JLT132-4/4	JLT160-8/6	JLT180-16/6

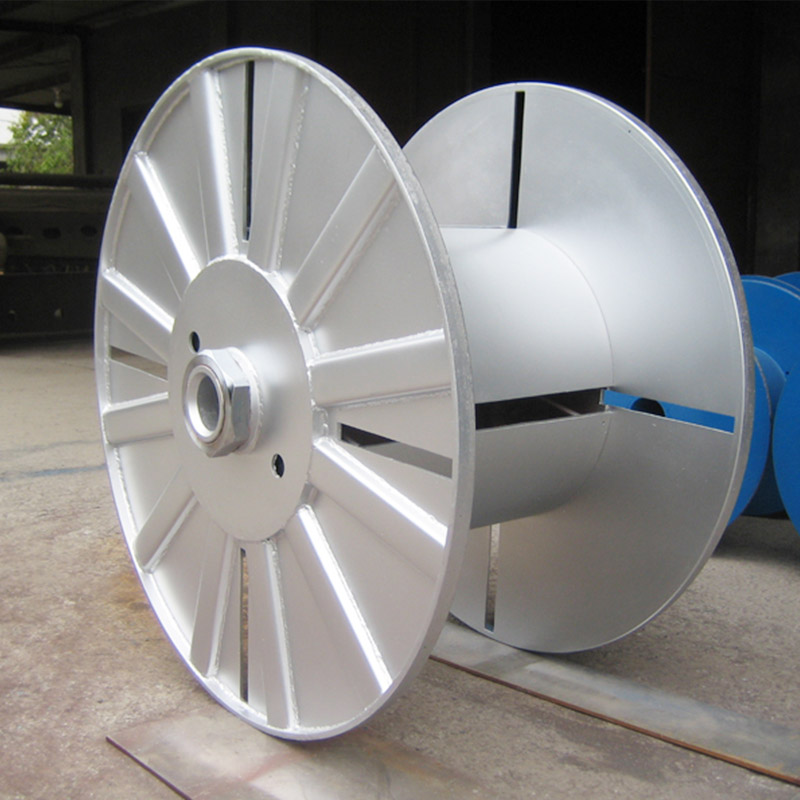

I-shaped wheel size	mm	400×160×300	800×400×500 600×320×300	1150×780×250
Dimensions	mm	1150×1080×608	2100×1900×1100 1500×1350×800	1470×1900×1250
Weight	kg	750	2000(800) 1850(610)	2200



Advantages and Working Principles of I-wheel Take-up Machine



The I-wheel take-up machine adopts the I-wheel take-up, which can facilitate the connection between processes and facilitate transportation management.

A continuous wire unloading device is often used behind the wire drawing machine. This continuous wire unloading device is also often called a wire take-up machine, including an inverted wire take-up machine and an I-wheel wire take-up machine. Its structure is similar to that of the continuous wire take-up machine. Make the wire drawing machine realize the continuous unloading of the heavy plate.

The Operation and Precautions of the I-wheel Take-up Machine

1. Operation: After the steel bar passes through the wire arranging roller, the end of the wire is inserted into the inner edge of the I-shaped wheel. Then press the “total point” switch to tighten the steel bar, and then start operation and production.

2. Matters needing attention

①The take-up tension of the I-wheel horizontal steel bar take-up machine should be adjusted according to the product specifications, but the tension current should not exceed 60A.

② Bearing parts should be cleaned regularly and coated with calcium-based grease.

③ The R37 reducer of the cable arrangement mechanism should be maintained and maintained in accordance with the maintenance and lubrication requirements of the reducer.

④ Grease is applied to the cable screw rod, guide rod, and sliding sleeve of the left head.
