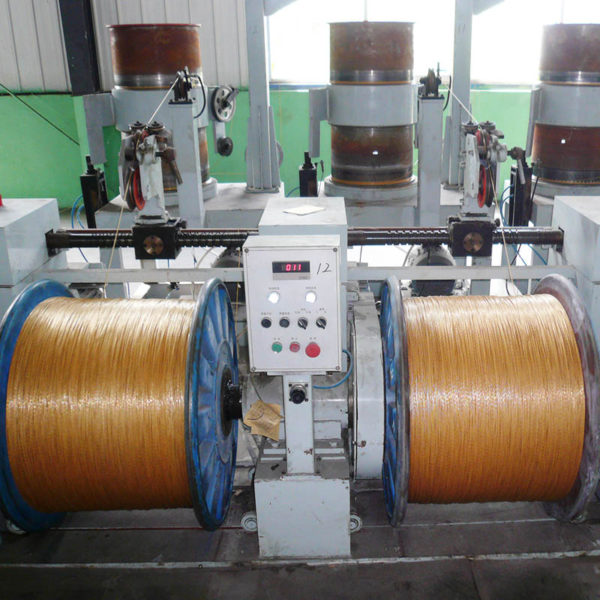

I-shaped Wheel Take-up Machine/Pay-off Machine

The I-shaped wheel take-up machine/pay-off machine is one of the pieces of equipment widely used in the continuous production of the metal products industry. It can be matched with any wire drawing machine to implement constant tension take-up and take-off. There are air clamps, polished rods, screw rods, and two-way.  There are several ways to arrange the wires with the screw rod, and the wires are neatly taken up. Except for the two-way screw rod, the width of the other wires can be adjusted.

The I-shaped wheel take-up machine is suitable for winding and bundling wires. The speed-regulating motor and the cable arrangement are important components of an I-wheel take-up machine. The selection of the motor and the cable is very important.

The working principle of the I-shaped wheel take-up machine generally adopts tension winding, and the automatic liner is used to realize pitch adjustment and reciprocating movement. The power can be selected from a torque motor or frequency conversion motor to control the take-up speed, so as to cooperate with other machinery to produce synchronously at the same speed.

The I-shaped take-up machine is basically a looper design, which is convenient for the replacement and recycling of the I-shaped take-up. According to the usage scenario, you can choose an integrated (dead) I-shaped wheel or a conveniently disassembled (live) I-shaped wheel.

The following ABE-DX400 and ABE-DX600 are I-wheel take-up machines suitable for galvanizing lines.

Technical Parameters of I-wheel Take-up Machine

Equipment Characteristics of I-shaped Wheel Take-up Machine/Pay-off Machine

1. Safe and reliable.

2. Operability is good.

3. Greatly reduce labor intensity.

4. Improve labor productivity.

5. It has a full-scale automatic alarm for parking.

6. Finished length double preset parking origami and other features.

7. It can be matched with any wire drawing machine.

8. Implement constant tension take-up and pay-off.

Technical Advantages of the I-shaped Wheel Take-up Machine/Pay-off Machine

The wire arranging device is an important device composed of the I-shaped wheel take-up machine.

The Chinese wire arranging device has a screw-type wire arranging device, and the crescent guide block is used to realize the positive and negative reciprocating movement of the wire.

There is also a polished rod liner, the take-up shaft transmits the speed of the polished rod, on the premise of not changing the speed of the polished rod, only need to toggle the indicator on the dial, and you can freely adjust the reciprocating movement of the liner in the direction of the polished rod axis speed.

The I-shaped wheel take-up machine can set the pitch from 0 to the terminal.

There is no need to change the rotation direction of the polished rod. When the movable arm bumper hits the reversing bumper, the walking direction of the cable straightener can be changed instantaneously, and the reversing time is less than 1 second.

The I-shaped wheel take-up machine is suitable for winding and bundling cold-rolled ribbed steel bars and is also suitable for quantitative winding of coiled cold-drawn wire, welding wire, cold-rolled small flat steel, steel cable, and other wire materials.

In short, the I-wheel take-up machine is widely used in wire drawing, cold rolling, wire, cable, textile, and other industries.
