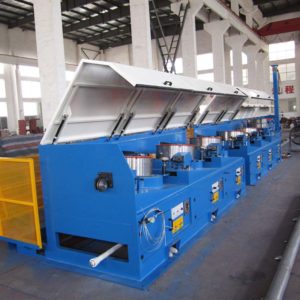

Copper Wire Drawing Machine

DZL300/13DH high-speed Large and Medium Copper Wire Drawing Machine Wire Drawing Belt Annealing Furnace

A. DZL250/13DH gear-type high-speed large and medium-sized copper wire drawing machine with continuous annealing machine composition:

(1) DZL250/13 copper wire drawing machine (without rolling head machine) 1 set

(2) YG300 tension control frame 1 set

(3) TH4000 annealing machine (with steam generator,) 1 set

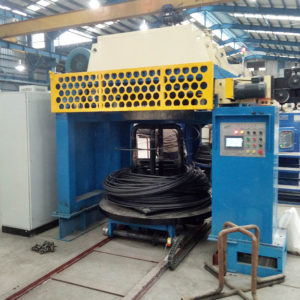

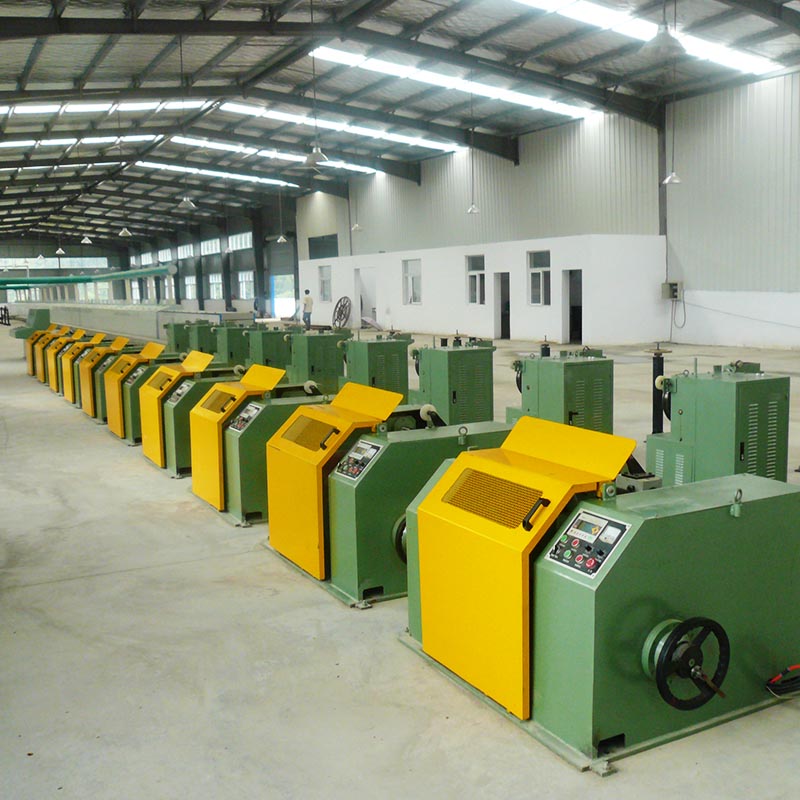

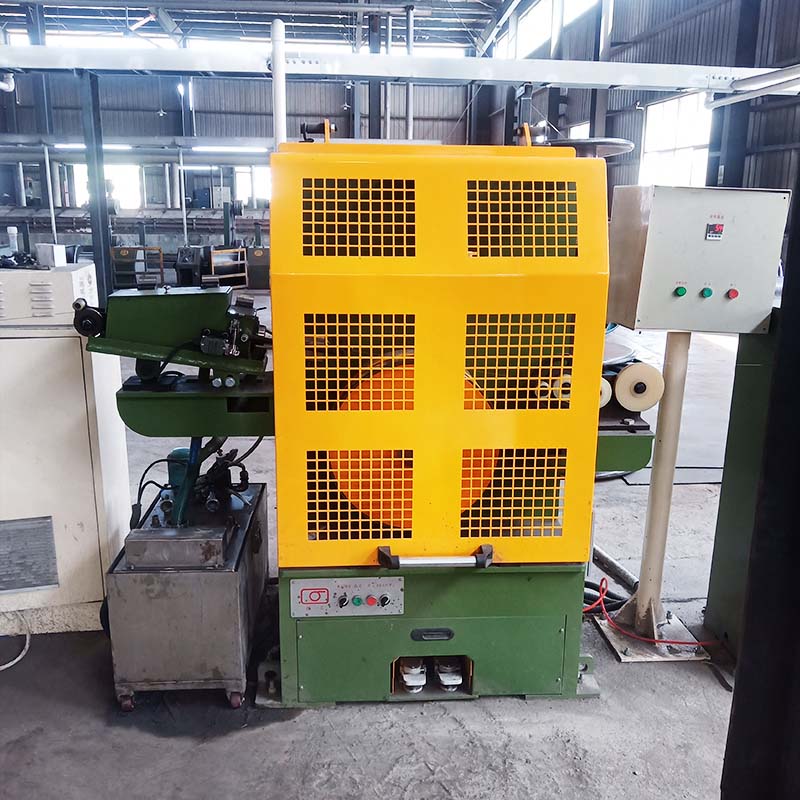

(4) WS630 shaftless wire take-up machine 1 set

(5) Electrical control system 1 set

(6) Ground foundation layout (including: water, electricity, and gas instruction connection diagram, for reference only.) 1 copy
Note: This information is applicable to the foundation installation on the first floor. Whether the equipment can be installed and used on the floor is the responsibility of the purchaser for design considerations; the reference materials shall be provided for confirmation within 15 days from the effective date of the contract.

(7) Random items

[Installation accessories] 1 set of connecting cables for the entire copper wire drawing machine production line (the wiring method is the overhead layout, excluding the main power supply line. The wiring length is provided according to the equipment layout diagram provided by the supplier.); the annealing machine is connected to the conductive copper bar Group 1.

[Technical information] 1 copy of the instruction manual for the copper wire drawing machine production line (including technical specifications, operating instructions, machine structure, reference table for matching molds, installation drawings and requirements, troubleshooting, maintenance, drawings, and models of wearing parts, electrical principles drawings, etc.), a manual for the main electrical components (including governor and PLC programmable controller).

Copper wire drawing machine packing list and certificate of conformity.

Copper wire drawing machine production line color: The mechanical part is sea blue, and the electrical cabinet part is beige. (or according to customer requirements)

Operation direction: right operation. Definition of operating direction: The operator faces the main machine of the copper wire drawing machine, enters the wire from the left, and takes up the wire from the right.

Applicable raw materials: low-oxygen or oxygen-free round copper wire Cu. The maximum wire specification is 6.8mm.

Control mode: The wire drawing and take-up of the copper wire drawing machine adopt AC frequency conversion control, and the annealing adopts DC control.

Production line production range: 0.8—2.76mm

Total weight: about 11000kg

Total installed capacity: 445 KVA;

B. Equipment introduction of the components of the production line:

The first part DZL250/13 copper wire drawing machine

The second part TH4000 annealing machine

The third part YG300 tension control frame

Part Four WS630 Shaftless Wire Take-up Machine

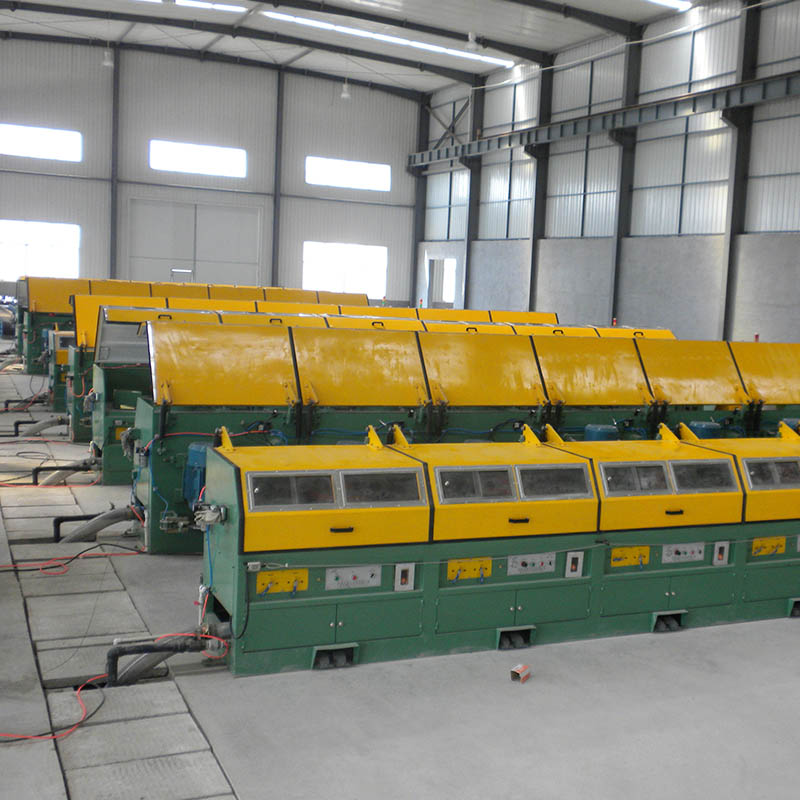

Part 1: DZL250/13 Copper Wire Drawing Machine

1. Equipment composition:

Pay-off rack 1

DZL300/13 drawing machine 1 set

1 console

Electrical control system 1 set

Drawing main motor 1 set

2. Technical parameters:

Wire diameter max 6.8 mm

Wire outlet range 0.8～2.76 mm

Mechanical speed max 1500 m/min

Number of molds max 13

Mold outer diameter 25㎜ & 30㎜

Mechanical elongation: 18.6% for sizing die; 25% for others;

Drawing drum diameter max 300 mm

Fixed flywheel diameter 300mm

Drawing main motor power AC75kw-6P

Dimensions of pay-off frame (L×W×H) 1215×550×3400mm

Dimensions of drawing machine (L×W×H) 2400×1070×1400mm

The net weight of the machine is about 3200 kg
