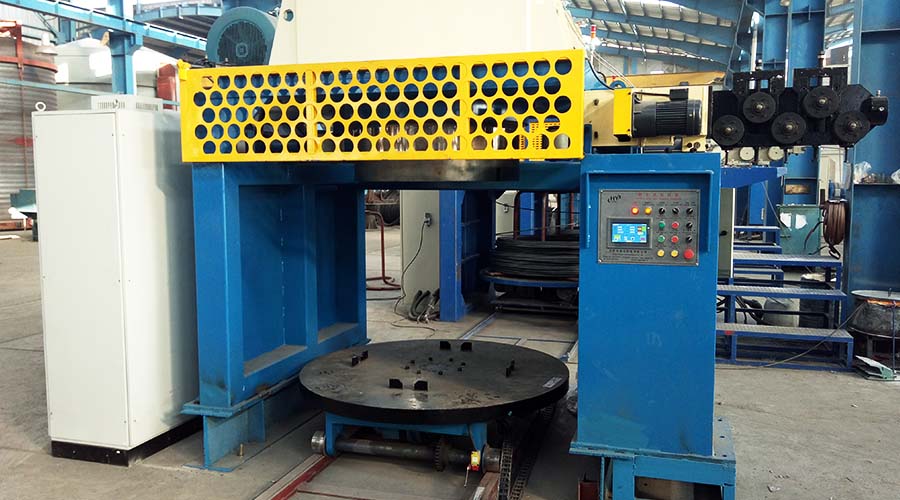

Before installing the inverted wire drawing machine, you need to choose the appropriate location, choose the equipment to place on a stable ground, and then install it effectively according to its instructions.

First, according to the foot holes of the machine base, use suitable expansion screws to fix it on the pre-laid cement foundation to fix it.

Then check whether the equipment can maintain a stable state and whether all auxiliary equipment is complete.

When tightening the equipment of the inverted wire drawing machine, you need to pay effective attention to adjusting the position of the main machine. During operation, the center of the drum and the rotation center of the trolley are at the same position.

When using it, pay attention to the fact that when adjusting the main unit, the trolley should be able to remain smooth during the forward and backward movement.

In addition, it is also necessary to properly connect the electrical circuits of the equipment according to the requirements for electricity consumption, without leakage or short circuit.

Some precautions when using the inverted wire drawing machine

When heating during the drawing process, there will be a problem, that is, what range should the temperature of the drawing fluid be controlled to be reasonable?

Under normal circumstances, the temperature of the drawing fluid is generally controlled within the range of 65 to 85°.

Of course, in actual work, adjustments need to be made based on actual conditions. As we all know, after the drawing fluid is heated, hot steam will usually emerge in the drawing chassis.

Under normal circumstances, users of the inverted wire drawing machine need to pay attention to such a problem during operation, which is to control the height of the drawing liquid below the center of the tower wheel shaft.

In addition, the pH of the drawing oil used in the wire drawing machine should also be controlled within a reasonable range.

Otherwise, if it is too high, it may cause the copper wire to become red, and may also cause damage to the equipment and reduce its life.

In addition, I would like to advise all users that if the work requires drawing some particularly thin metal wires, you should pay attention to the wire drawing machine starting slowly and then slowly accelerating to prevent wire breakage.

The operation of the inverted wire drawing machine has also become more and more user-friendly, and this is all due to its reasonable design and technology, especially the use of CNC devices, which makes the inverted wire drawing machine more automated and better able to meet the needs of users.

The changes are obvious to everyone. Starting from its take-up trolley device, it can start with only one large plate. After the steel bars fall into the large plate, the large plate needs to be pulled out manually or mechanically, and then unloaded by a crane.
