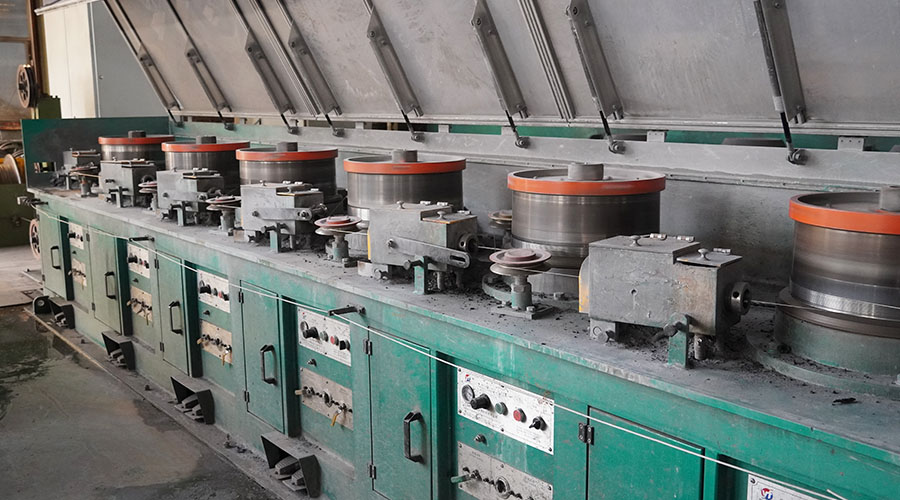

Electrical wire drawing equipment is a specialized machine used in the manufacturing of electrical wires. This equipment is designed to draw metal wires from a solid rod or billet through dies, which are precision-machined tools that shape the wire to the desired diameter and other specifications.

The process of wire drawing machine involves applying tension to the metal as it is pulled through the dies, which causes it to become longer and thinner.

There are several types of electrical wire drawing equipment available, including:

Vertical Draw Benches: These machines have a vertical orientation, with the die mounted above the workpiece holder. The operator feeds the metal into the die and applies tension to the wire as it is drawn through the dies.
Horizontal Draw Benches: These machines have a horizontal orientation, with the die mounted below the workpiece holder. The operator feeds the metal into the die and applies tension to the wire as it is drawn through the dies.
Four-Roller Wire Drawing Machines: These machines use four rollers to apply tension to the metal as it is drawn through the dies. The rollers are arranged in a V-shape, with the die at the bottom of the V.
Single-Acting Wire Drawing Machines: These machines use a single hydraulic cylinder to apply tension to the metal as it is drawn through the dies. The operator controls the amount of tension by adjusting the pressure in the cylinder.
Double-Acting Wire Drawing Machines: These machines use two hydraulic cylinders to apply tension to the metal as it is drawn through the dies. The operator can control the amount of tension on each side of the die independently, allowing for more precise control over the wire’s dimensions.

Electrical wire drawing equipment is typically used in industries such as automotive, aerospace, electronics, and construction, among others. It is an essential tool for manufacturers who need to produce high-quality wires with consistent dimensions and properties.

In addition to drawing wires, these machines can also be used for other processes such as annealing, cutting, and polishing. Some machines even have built-in testing capabilities, allowing operators to measure the electrical conductivity and other properties of the wire as it is being drawn.

Overall, electrical wire drawing equipment is a critical component of modern manufacturing processes. Its ability to produce high-quality wires with precise dimensions and properties makes it an essential tool for businesses across a wide range of industries.
