Wire Drawing Machine

Wire Drawing Machine

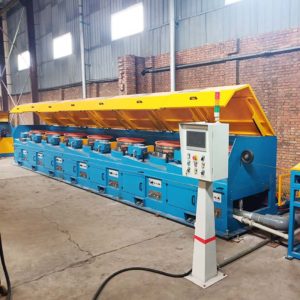

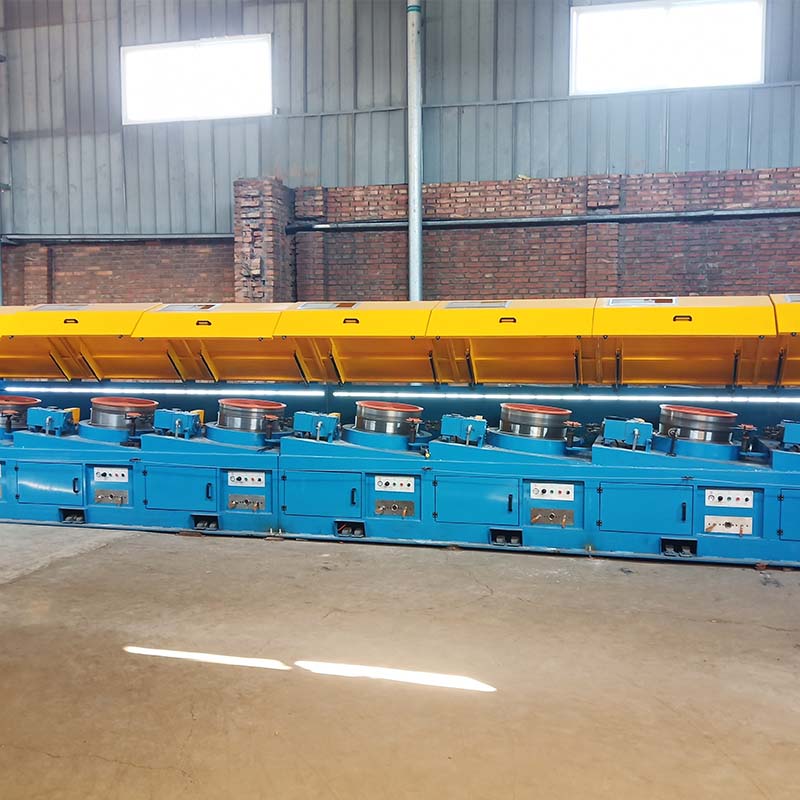

The straight line wire drawing machine improved by our company is mainly suitable for drawing various metal wires below Ф14mm, such as spring steel wire, rope-making steel wire, bead steel wire, flux-cored welding wire, gas-shielded welding wire, aluminum clad steel wire, prestressed steel wire, hose steel wire, And fastener wire and other types of low, medium and high carbon steel wire.

The drum diameter is Ф350-1200mm. This series of wire drawing machines have multiple functions such as human-machine dialogue, motor over-temperature protection, water pressure abnormality, meter counting, full-foot alarm, and fault display.

Optional for use with the straight line wire drawing machine: the wire rod pretreatment production line produced by our company has single-line and double-line configurations (duckbill pay-off-random line parking-mechanical shelling-steel brush removal of oxide scale-water washing-electrolysis Pickling – hot water washing – boron coating – drying – online drawing machine drawing).

Determine the drawing speed and motor power according to the strength of the drawing material and customer requirements.

Our company’s improved design and production of straight-forward wire drawing units are forward-looking and include domestic leading technologies.

It has leading advantages in the hardening technology processing and cooling (air cooling, water cooling) system of the drawing reel. The unit has multi-item signal sampling in terms of setting speed and stress sensor, making it truly intelligent.

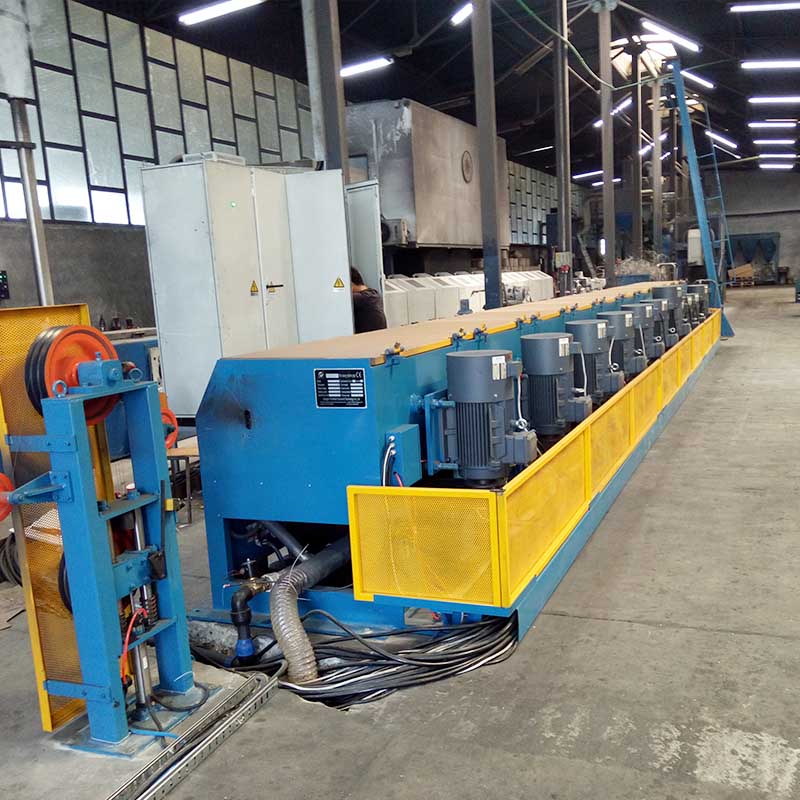

The straight line wire drawing unit uses a straight-line double-disc wire rod pay-off stand for drawing high-carbon spring wire, a top-take-off pay-off stand for drawing low-carbon wire, and an electric rotating pay-off stand for drawing bearing steel wire. It is suitable, and the take-up forms are diverse (reel take-up, trunk take-up, I-wheel take-up, inverted take-up).

The straight line wire drawing machine can achieve a high total compression rate, multiple passes, low partial compression rate, and high-speed operation.

Straight Line Wire Drawing Machine Parameter

Features

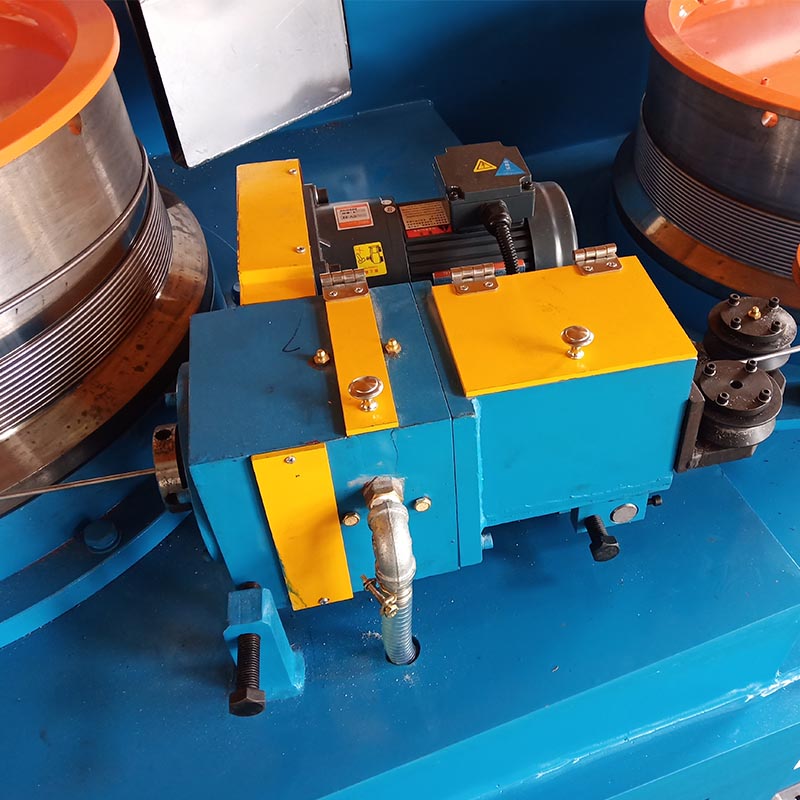

The intermediate drum cooling system, mold box tuning device, lubrication supply and mold box design, line pressing roller device, outlet line straightening device, etc. of the straight-in wire drawing machine all evolved from the practice of the production line and are practical.

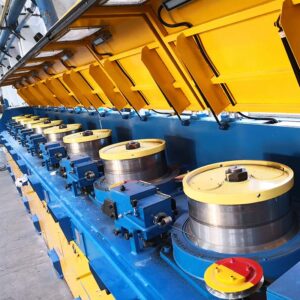

The main functions of the straight line wire drawing machine: are AC frequency conversion technology (programmable control system), screen display, easy operation, and a high degree of automation. The drum adopts air cooling plus water cooling, and the mold box adopts direct water cooling, which has a good effect.

The transmission part adopts a one-stage powerful narrow V-belt and hard tooth surface reducer, which has high transmission efficiency. It adopts a fully enclosed protection design and has good safety.

Using air tension to adjust the drawing, has good stability.

Accurate length measurement, disconnection shutdown alarm, forward and reverse inching linkage, and fault information display.

Supports limited arbitrary mold matching, automatic adjustment of mold wear, and arbitrary reel removal by jumper device.

Supports different processes and other functions.
