Water Tank Wire Drawing Machine has a heavy water tank and a flip water tank.

Water Tank Wire Drawing Machine is suitable for drawing various metal wires of medium and fine specifications, especially suitable for drawing high, medium, and low carbon steel wires, galvanized iron wires, bead steel wires, hose steel wires, tungsten, molybdenum, titanium and other alloy wires, steel cords, copper wires, and aluminum wires, etc.

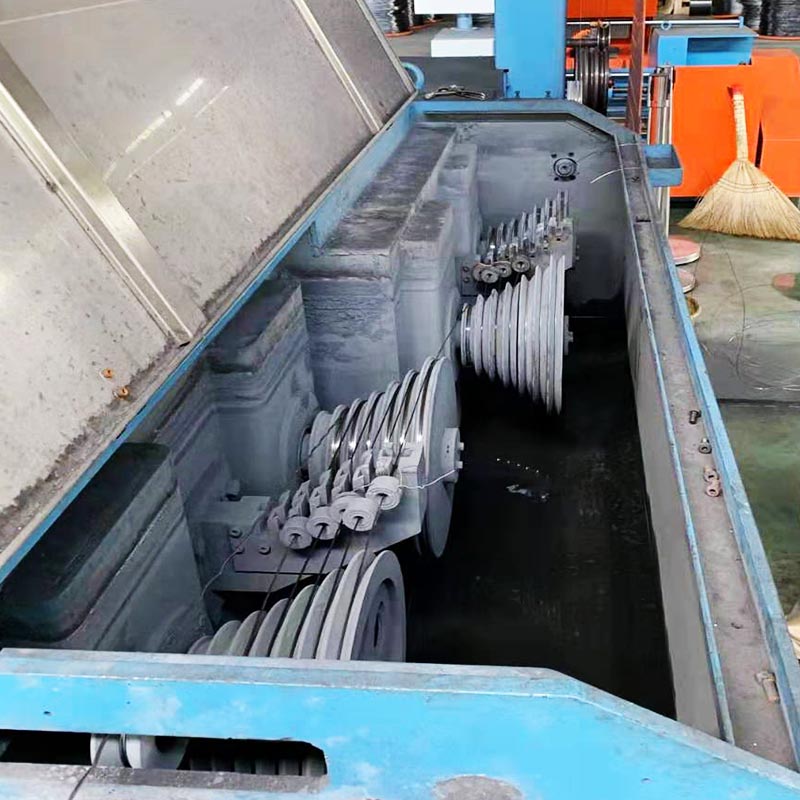

The water tank wire drawing machine is a small continuous production equipment composed of multiple drawing heads.
After drawing step by step, the drawing heads are placed in the water tank, and finally, the steel wire is drawn to the required specifications.

During the whole drawing process, only one electric motor is required to drive through mechanical transmission or gearbox.

Depending on the configuration of the drawing die, the drawing speed of each drawing head also changes.

The winding link of the wet wire drawing machine is the core link in the control system of this equipment, and this link also directly affects the quality of the steel wire.

For winding, there are usually several control methods:

1) water tank wire drawing machine is adjusted by the tension roller, and the tension during winding is guaranteed by the tension roller’s own weight.

2) Using torque control, the tension during winding is determined by the given torque, but the winding tension will be unbalanced due to the change in winding diameter.

3) For the water tank wire drawing machine with high technical requirements, the first control mode is usually adopted, and the PID correction function of the frequency converter ACS510 is used to control the adjustment of the tension roller.
