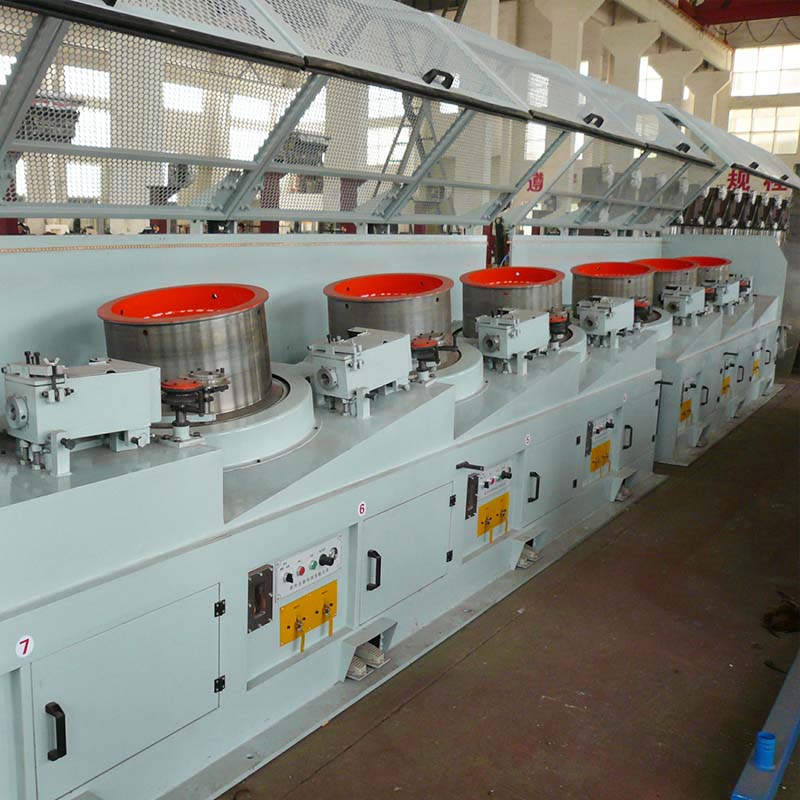

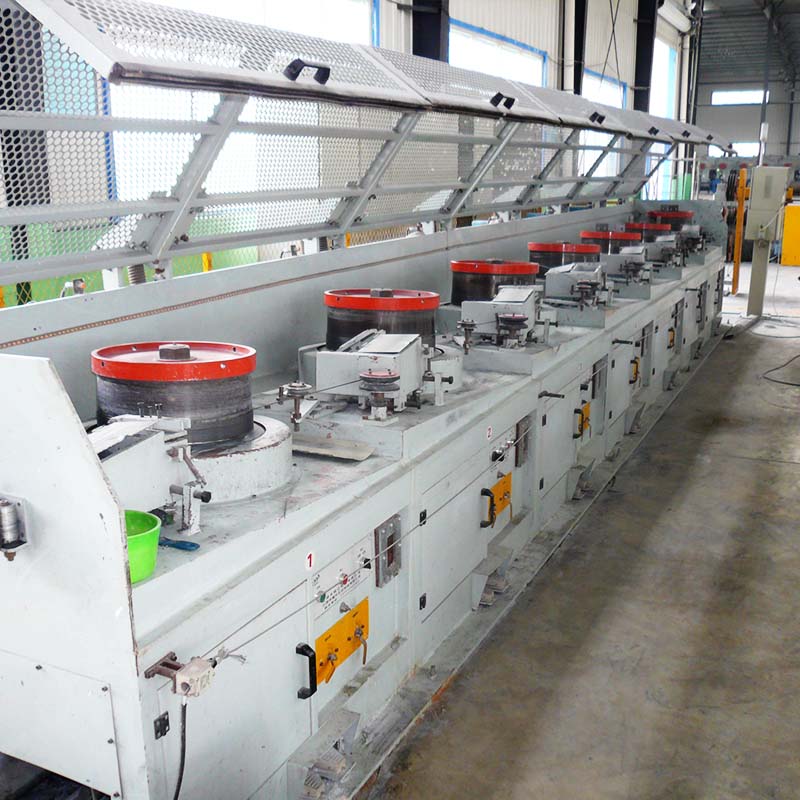

Straight-in Continuous Wire Drawing Machine
Straight-in Continuous Wire Drawing Machine
1. The LZ series straight wire drawing machine produced by our factory is a high-grade wire drawing machine developed and produced by adopting the introduction, absorption, and digestion technology.
2. It is suitable for drawing various metal wires below Ф14mm.
3. The applicable drawing range includes spring steel wire, rope-making steel wire, cord steel wire, bead steel wire, medicinal wire welding wire, gas-shielded welding wire, aluminum clad steel wire, prestressed steel wire, hose steel wire, and all kinds of low, medium and high carbon steel wire and so on.
4. Saves electricity and energy, greatly reducing production costs.
Straight-in Continuous Wire Drawing Machine
The LZ series straight-in continuous wire drawing machine produced by our factory is a high-grade wire drawing machine developed and produced by adopting the introduction, absorption, and digestion technology.
It is suitable for drawing various metal wires below Ф14mm.
The applicable drawing range includes spring steel wire, rope-making steel wire, cord steel wire, bead steel wire, medicinal wire welding wire, gas-shielded welding wire, aluminum clad steel wire, prestressed steel wire, hose steel wire, and all kinds of low, medium and high carbon steel wire and so on.
Main Technical Parameters
| Items | Unit | LZ9/900 | LZ9/8 | LZ9/700 | LZ10/560 | LZ10/400 |
|---|---|---|---|---|---|---|
| Reel Diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw Passage | time | 9 | 9 | 9 | 10 | 10 |
| Incoming Wire Dia | mm | Ф14～8 | Ф10～8 | Ф8～6.5 | Ф6.5～5.5 | Ф14～8 |
| Outgoing Wire Dia | mm | Ф5～3 | Ф4～3 | Ф3～2.5 | Ф2～1.8 | Ф1～0.8 |
| Wire Drawing Speed | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming Strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total Compression Ratio | % | 87.24～85.94 | 84～85.94 | 85.94～85.21 | 90.53～89.29 | 87.24～84 |
| Average Compression Ratio | % | 20.48～19.58 | 18.42～19.58 | 19.58～19.13 | 21.00～20.02 | 18.61～16.74 |
| Single Motor Power | Kw | 110～90 | 90～55 | 75～55 | 37～22 | 15～7.5 |
Features of the Straight-in Continuous Wire Drawing Machine
1. The combination of reel narrow slit water cooling and forced air cooling;
2. The drawing die is directly water-cooled;
3. The transmission adopts a one-stage strong narrow V-belt combined with a one-stage plane Secondary enveloping worm gear pair transmission or two-stage strong narrow V drive;
4. Fully enclosed protection system;
5. Air tension tuning;

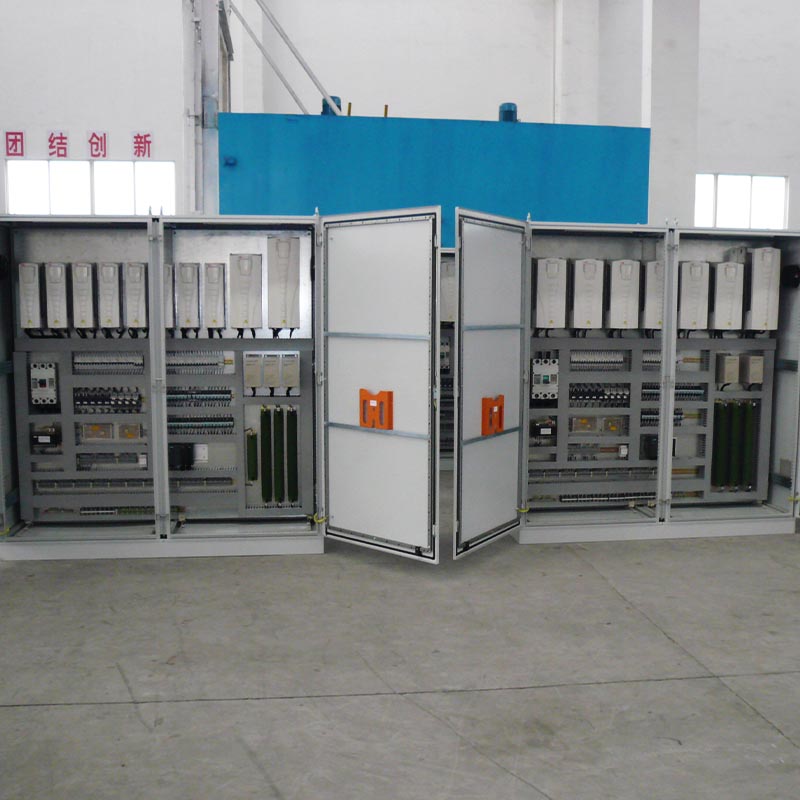

6. AC frequency conversion control technology;
7. Field bus or digital-to-analog conversion technology;
8. Touch screen display.
9. This series of units is high-grade, safe, and convenient to operate, effectively reduces the torsion of the steel wire, and improves the quality of the product.
10. Straight-in Continuous Wire Drawing Machine Saves electricity and energy, greatly reducing production costs.
