Inverted Wire Drawing Machine
Inverted Wire Drawing Machine
1. The inverted wire drawing machine can draw high, medium, and low carbon steel wire rods and non-ferrous metal wires with a diameter of less than Φ38mm.
2. Mainly suitable for the cold heading of standard parts, automobiles and motorcycles, industrial materials, standard high carbon steel wires, and cables, etc.
3. Frequency conversion speed regulation, stable traction.
4. The level of automation is high, and one person can operate multiple machines at the same time.
5. AC step-less speed regulation, easy to operate, safe and reliable, and energy saving 10%-30%.
Inverted Wire Drawing Machine
Our company’s improved inverted wire drawing machine breaks through the traditional concept design. The body of the inverted wire drawing machine will not feel shaking during operation. This is one of the things that many manufacturers in the same industry find difficult to achieve.
This inverted wire drawing machine has various models and can draw high, medium, and low carbon steel wire rods and non-ferrous metal wire rods with a diameter of less than Φ38mm. Wires with heavy discharge weight.
The inverted wire drawing machines are mainly suitable for the cold heading of standard parts, automobiles and motorcycles, industrial materials, standard high carbon steel wires, cables, etc.
Frequency conversion speed regulation, stable traction, high automation level, one person can operate multiple machines at the same time.
Features of Inverted Wire Drawing Machine
1. The transmission system of the inverted wire drawing machine adopts a combination of a first-class powerful narrow V-belt and a hard-tooth surface reducer or a pendulum ring reducer. The drum has a large winding weight and the capstan is forced to be air-cooled;
2. Pneumatic pressure wheel; the power and ring diameter of the offline plate are adjustable independently;
3. AC step-less speed regulation, easy to operate, safe and reliable, and energy saving 10%-30%.

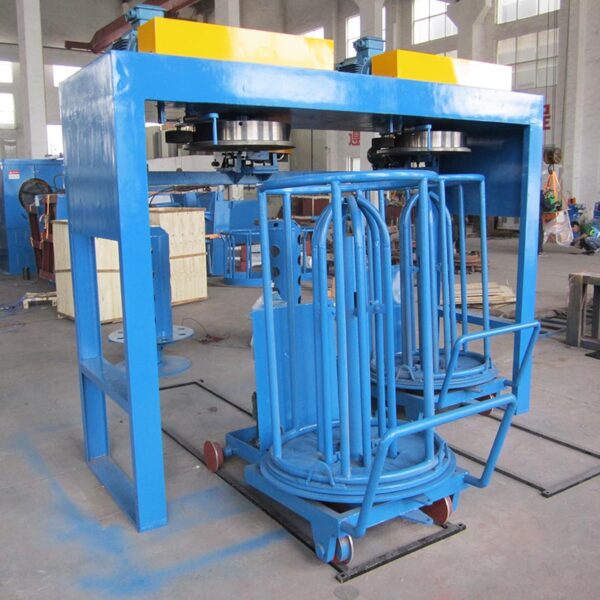

Inverted wire drawing machine host: The take-up reel installed on the top of the frame is rotated by an AC motor through a gear reducer. The AC motor speed is controlled by an AC frequency converter to achieve step-less speed regulation.

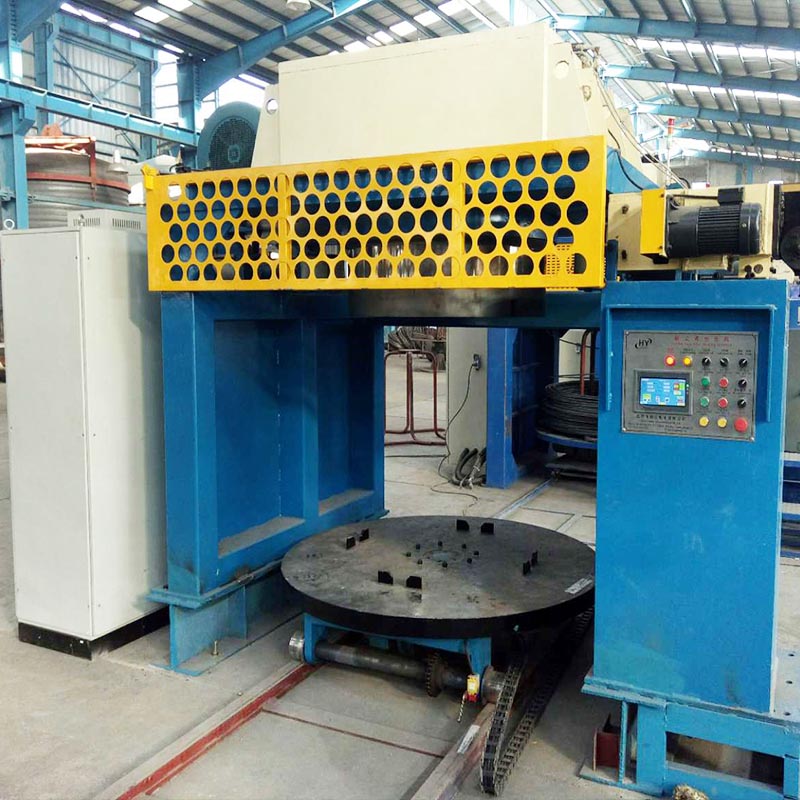

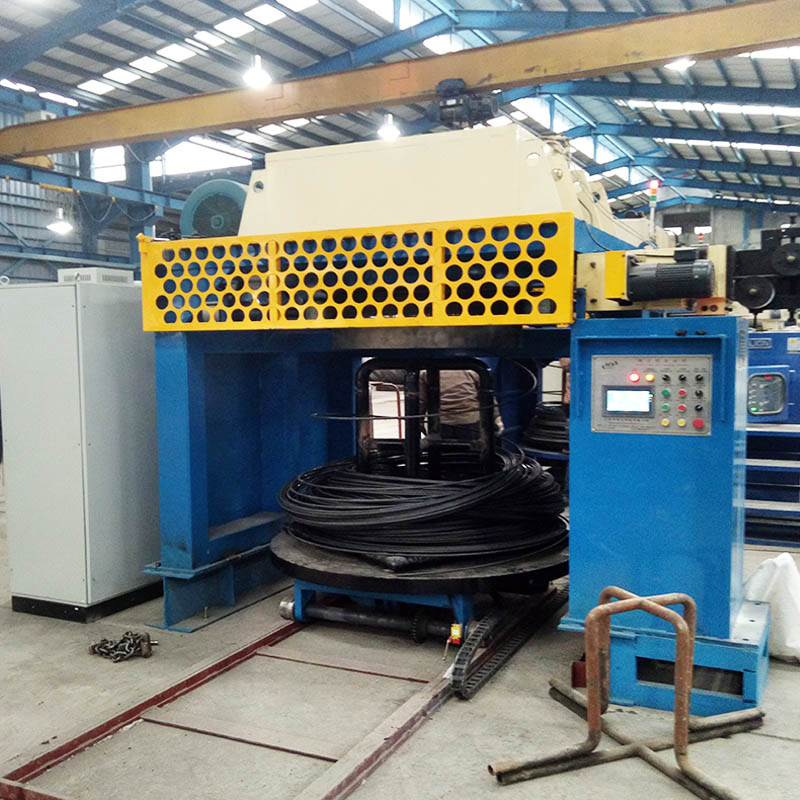

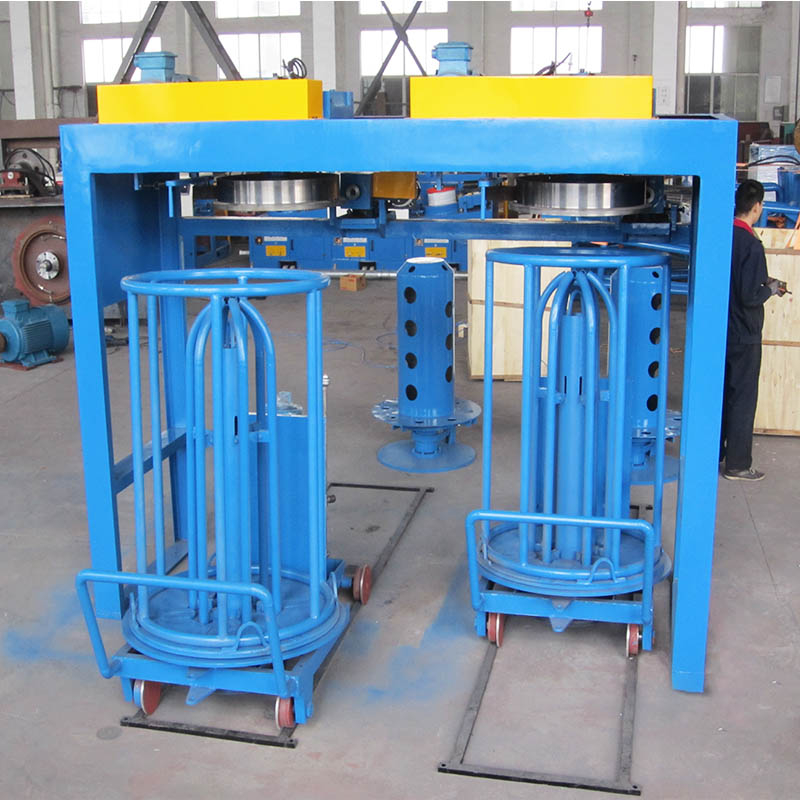

Inverted wire drawing machine take-up trolley: The take-up trolley is equipped with a descending device, and the bottom guide rail allows the trolley to enter and exit.
Electrical control system of inverted wire drawing machines: consists of AC frequency converter, contactor, and operation panel. The system uses AC frequency converters to control asynchronous motors.
The frequency converter changes the frequency of the input power of the three-phase AC motor, allowing the AC motor to achieve step-less speed regulation. It has good speed regulation performance, wide range, complete protection functions, small size, lightweight, simple structure, and easy installation and maintenance.
The pneumatic system of the inverted wire drawing machines: consists of a cylinder, a solenoid valve, and a triple air source. The system is controlled by the solenoid valve to control the wire on the reel and press it smoothly.
Inverted Wire Drawing Machines Parameter
Model | LDD-1400 | LDD-1200 | LDD-1000 | LDD-800 | LDD-600 |
Finished product diameter | 1400mm | 1200mm | 1000mm | 800mm | 600mm |
Maximum line | 40mm | 30-25mm | 20-16mm | 16-8mm | 12-6.5mm |
Drawing speed | 28m/min | 0-48m/min | 0-60m/min | 0-80m/min | 0-120m/min |
Average compression rate | 28-10% | 20-20% | 25-10% | 30-25% | 30% |
Motor Power | 110kw | 75-55kw | 55-45kw | 45-37kw | 22-15kg |
Line weight | 2300kg | 2300kg | 2300kg | 1100kg | 800kg |
