Inverted Take-up Machine
1. The inverted wire take-up machine is suitable for large-scale re-winding after heat treatment, rewinding of stainless steel wire after annealing, bright drawing, lead-hardened steel wire, and galvanized steel wire.
2. Inverted wire take-up machine mainly includes a frame, motor, reel, wire take-up trolley, wire take-up frame, reducer, cylinder, pressure wheel, straightening bracket, wire passing guide wheel, horizontal seat plate, vertical seat plate, and alignment wheel.
Inverted Take-up Machine

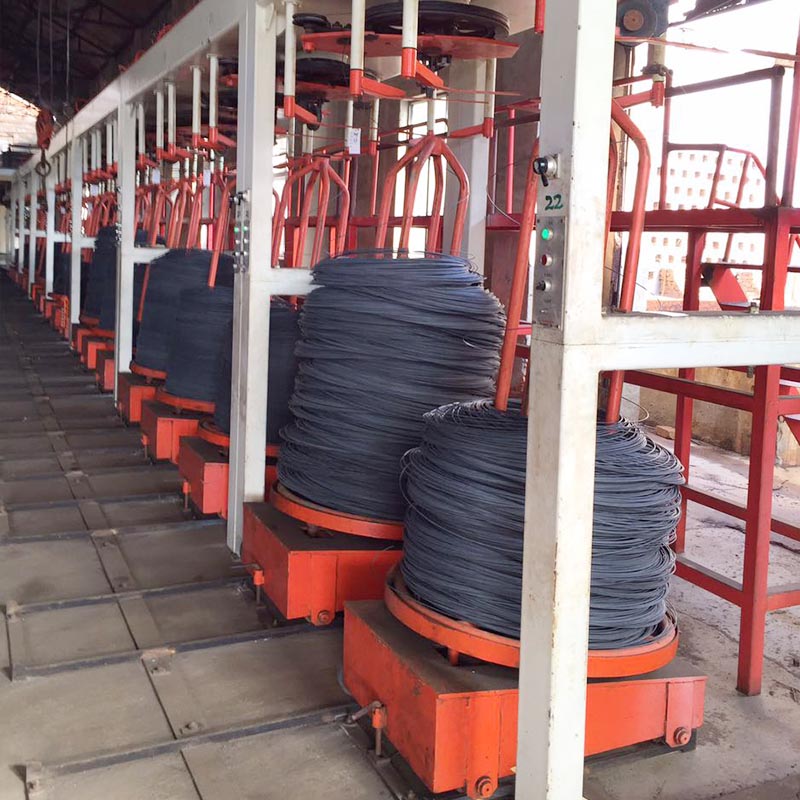

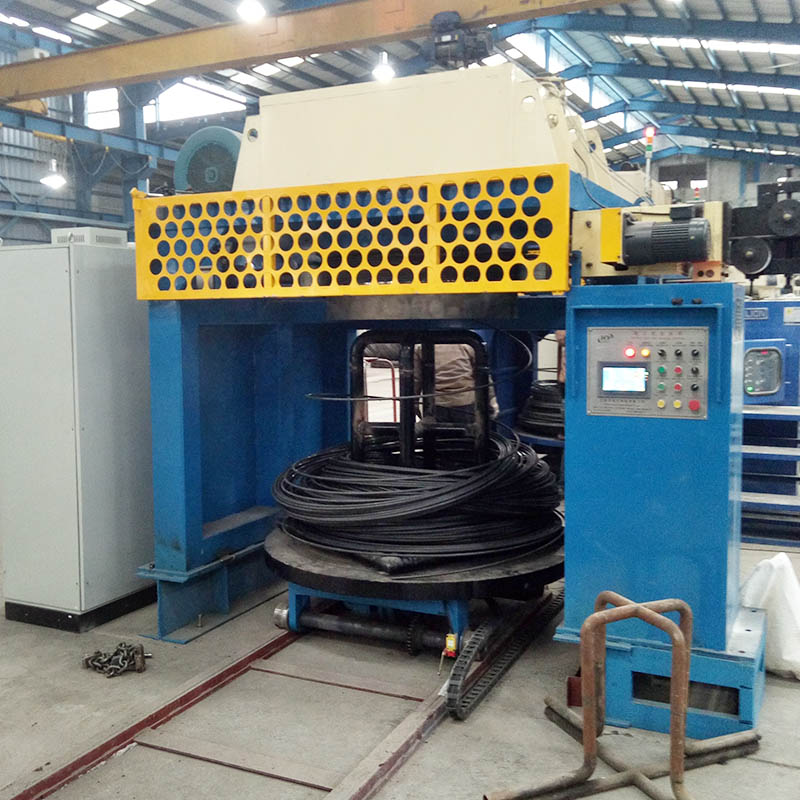

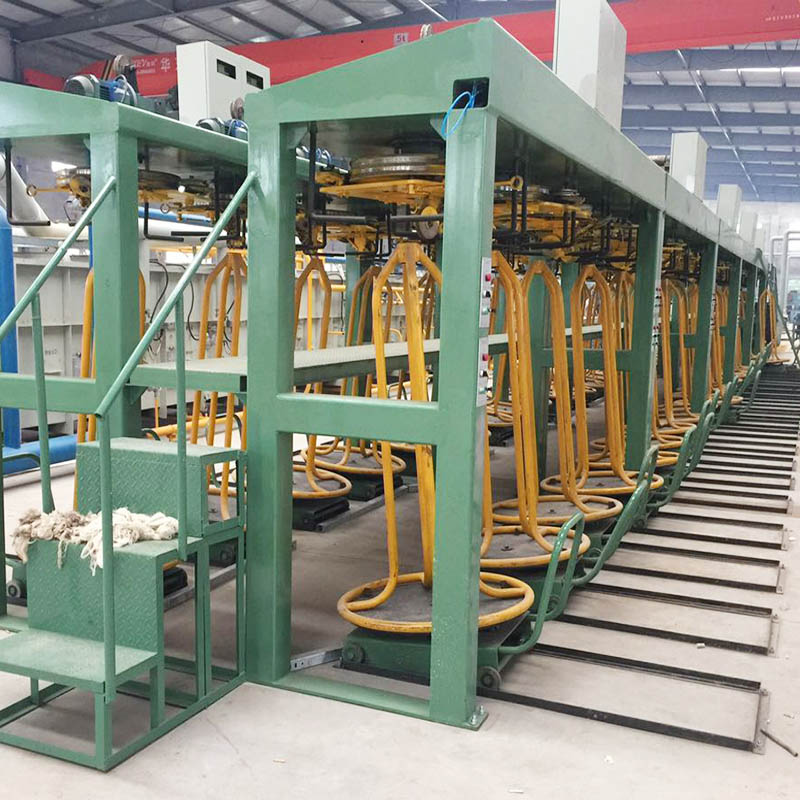

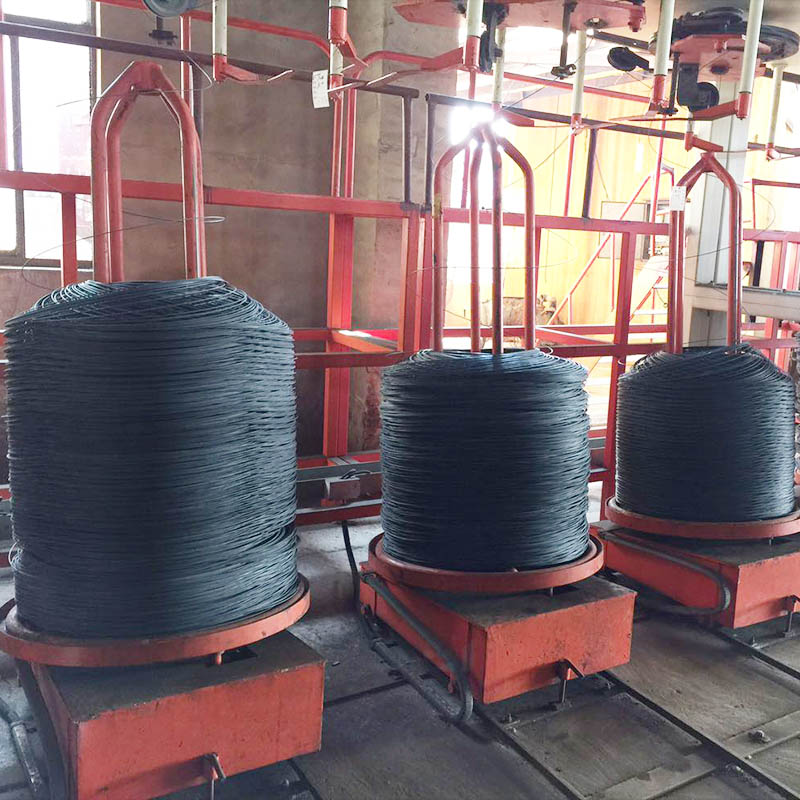

The inverted wire take-up machine (Inverted Take-up Machine ) is a device used for drawing high-strength, thick-gauge prestressed metal wires. It winds the annealed steel wire to the take-up frame according to the take-up speed required by different diameters. When the take-up frame winds to a fixed length, the wire is dropped onto the trolley and removed, so as to realize continuous take-up.
The inverted wire take-up machine is suitable for large-scale re-winding after heat treatment, rewinding of stainless steel wire after annealing, bright drawing, lead-hardened steel wire, and galvanized steel wire.
Inverted wire take-up machine mainly includes a frame, motor, reel, wire take-up trolley, wire take-up frame, reducer, cylinder, pressure wheel, straightening bracket, wire passing guide wheel, horizontal seat plate, vertical seat plate, and alignment wheel.
Features of inverted wire take-up machine: continuous production, large wire take-up reel, first-class belt combination cycloid reducer drive, AC frequency conversion control, smooth step-less speed regulation.
The reel weight can reach 2 tons or more.
Inverted Take-up Machine Technical Parameter
| Item | Unit | Model Name | |||
|---|---|---|---|---|---|
| DV1000 | DV800 | DV600 | DV450 | ||
| Sheave (reel) diameter | mm | 1000 | 800 | 600 | 450 |
| Receiving (pay-off) wire diameter | mm | 6.0-12 | 3.0-7.0 | 2.0-5.0 | 1.0-3.0 |
| Receiving (pay-off) wire speed | m/min | ＜10 | ＜20 | ＜20 | ＜25 |
| Motor Power | kw | 3-5 | 2.0-3 | 2.2-1.0 | 0.75 |
| Dimensions | mm | 1700×1500×2700 | 1500×1400×2700 | 1400×1300×2700 | 1300×1000×2500 |
| Weight | kg | 2300 | 1800 | 1400 | 1300 |
Note: Special designs can be made according to the special requirements and technical parameters put forward by users.
Technical Advantages of Inverted Wire Take-up Machine
1. The structure of the inverted wire take-up machine is simple, compact, and reasonable.
2. The wire take-up frame is driven by an independent reducer to realize the adjustable wire ring diameter and the speed is synchronized with the main shaft pulley.
3. It is easy to operate, reduces labor intensity, and improves labor efficiency.
4. Due to the cancellation of the lever sleeve, the service life of the take-up frame is greatly increased.
5. YF Metal Tech manufactures vertical wire take-up machines. The take-up frame has its own motor to realize rotation, which can realize continuous wire take-up. It is easy to operate and safe to use.
