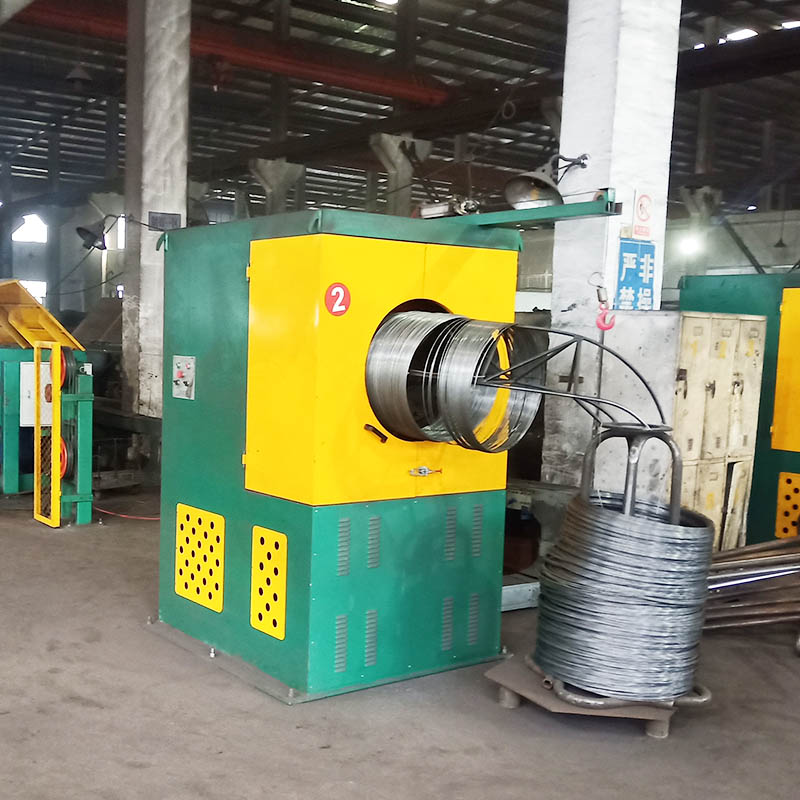

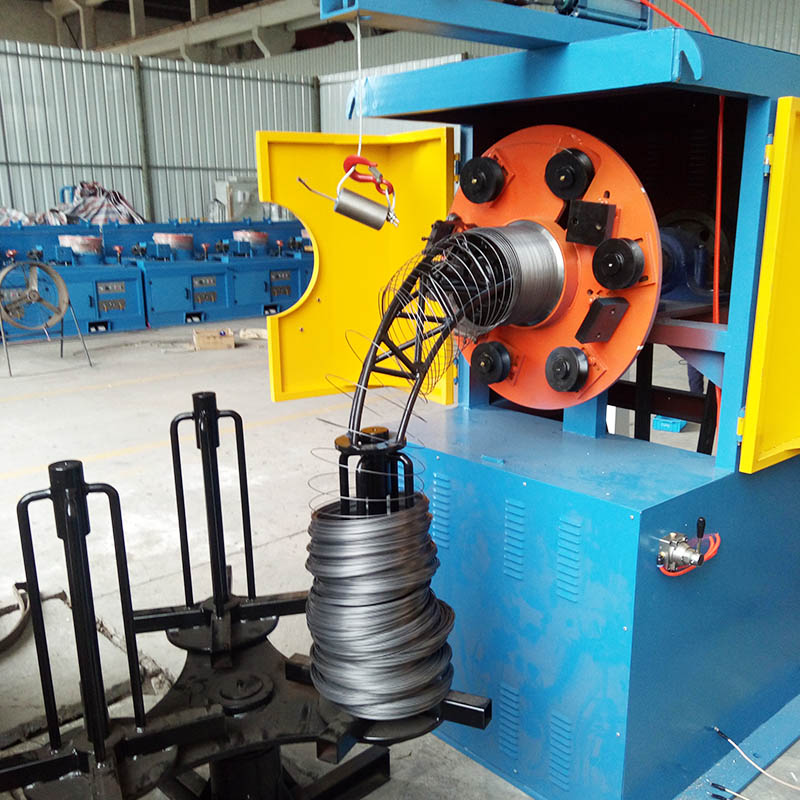

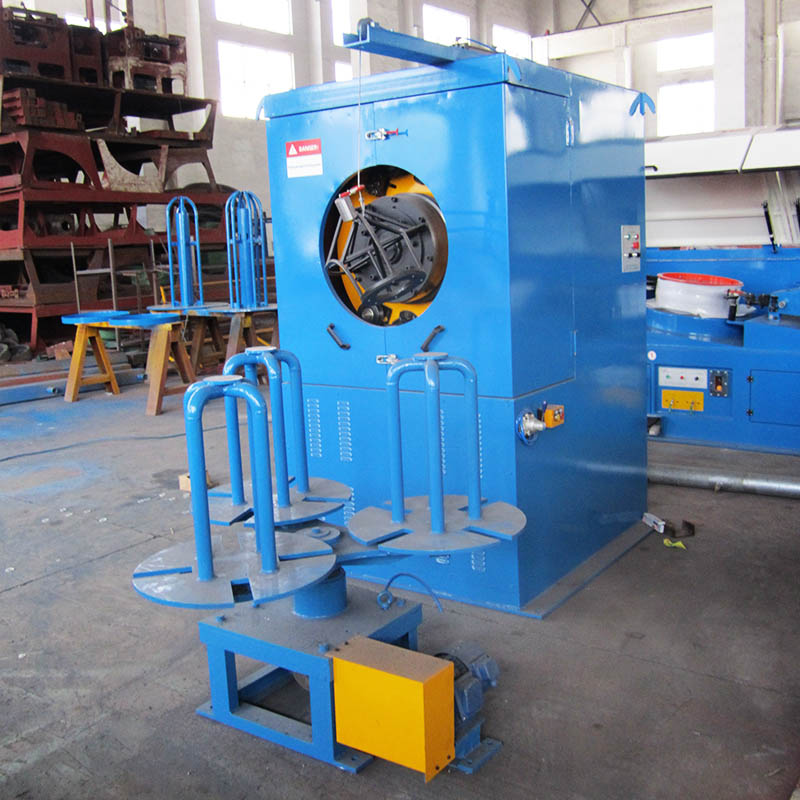

The high-efficiency High-speed Elephant Trunk Take-up Machine produced by YF Metal Tech is designed for drawing high-carbon steel wire and can ensure the flatness of the steel wire.

And it is a new type of take-up machine that does not need to stop for the large-scale heavy unloading line.

Compared with the ordinary elephant trunk take-up, the high-efficiency and high-speed elephant trunk take-up produced by YF Metal Tech adds a calibration die, thereby increasing the straightening and flatness of the steel wire.

The high-efficiency and high-speed elephant trunk type wire take-up machine adopts water-cooling and air-cooling, and the calibration dies adopt water-cooling, which greatly improves the product quality of the steel wire, and is especially suitable for the take-up of high-strength steel wire after drawing.

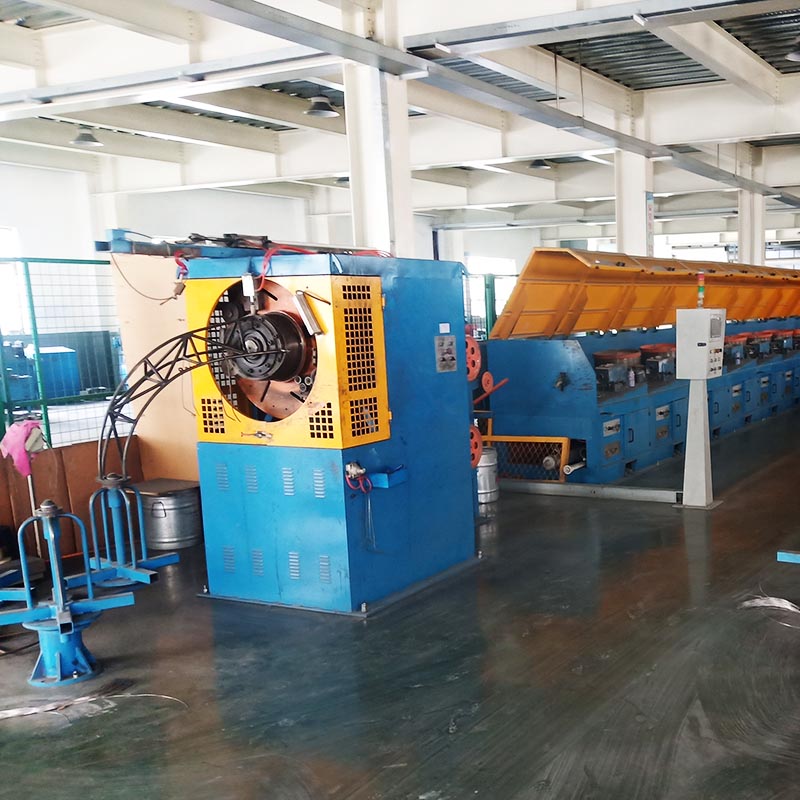

This type of high-speed elephant trunk wire take-up machine can be used in conjunction with a straight wire drawing machine and a heavy water tank type wire drawing machine.

Elephant Trunk Take-up Machine Technical Parameter

Technical Advantages of High-speed Elephant Trunk Type Wire Take-up Machine

Elephant trunk type automatic winding and bundling machine, the control box with motor and processor inside is fixed and parallel to the bundling box, and the front panel of the control box is equipped with a control panel and display lights.

The top of the control box is welded with a support rod with a correction ring on the top, a guide wheel is embedded above the correction ring, and a bracket with a direction sleeve is placed directly below the correction ring.

The front end of the control box is fixedly welded with deflector wheels and tension wheels in an S-shaped arrangement, and a concave hole is dug at the joint between the tension wheels and the control box.

The center of the baling box is fixed with a circular turntable connected to the motor drive, and the center of the turntable is fixedly sleeved with a cylindrical sleeve. Below the joint between the sleeve and the turntable, there are guide shafts and runners in an S-shaped arrangement. The sleeve There is a fixed collection rack directly below.

It has the advantages of simple structure, convenient operation, reasonable design, good bundling effect, easy maintenance, high safety factor, and low power consumption.
