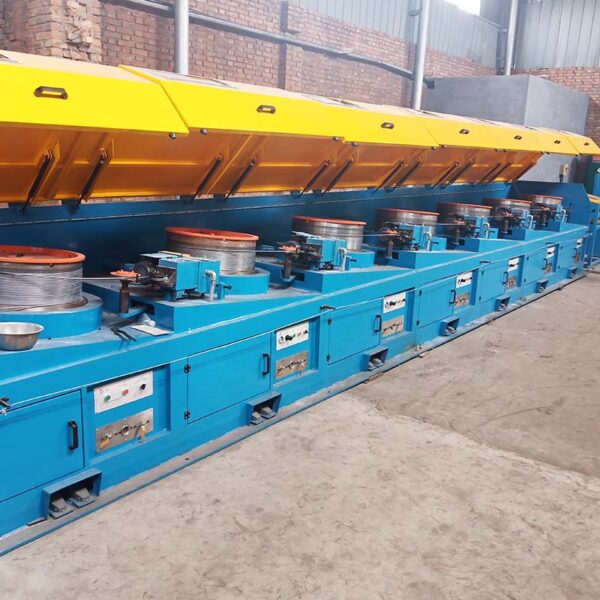

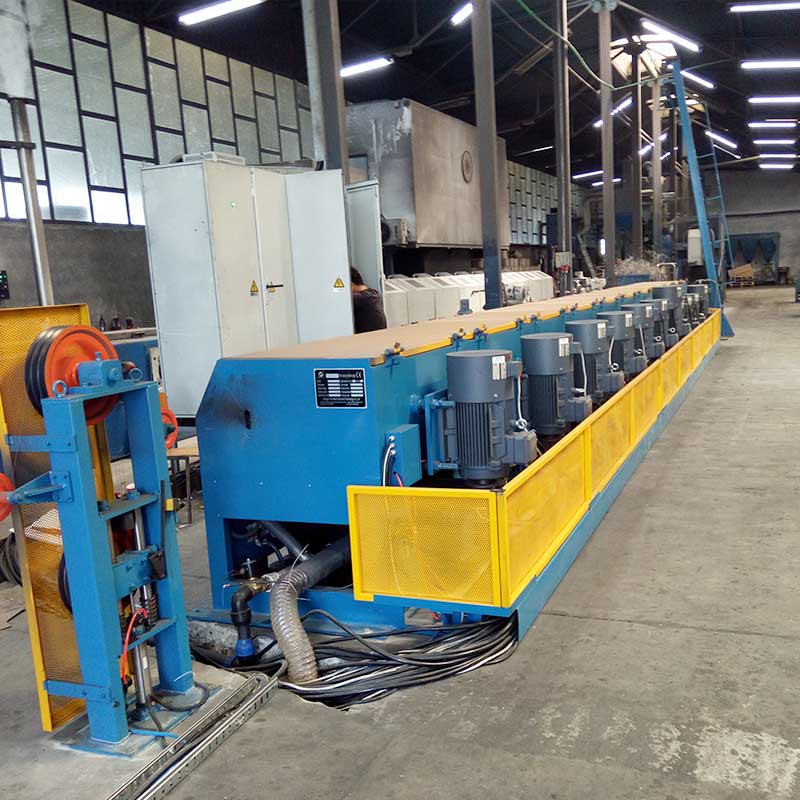

High Carbon Steel Wire Drawing Machine
High Carbon Steel Wire Drawing Machine
1. High carbon steel wire drawing machine with high production efficiency
2. Product quality is stable and reliable
3. Higher speed and more stable quality
4. Automated manufacturing
5. Greatly reduces the workload of manual operations and the possibility of human error
High Carbon Steel Wire Drawing Machine
High carbon steel wire drawing machine is a kind of equipment used to process high carbon steel wire. High carbon steel has high strength, high hardness and good wear resistance, and is widely used in the manufacture of mechanical parts, springs, wire ropes and other industrial fields.
Equipment Composition

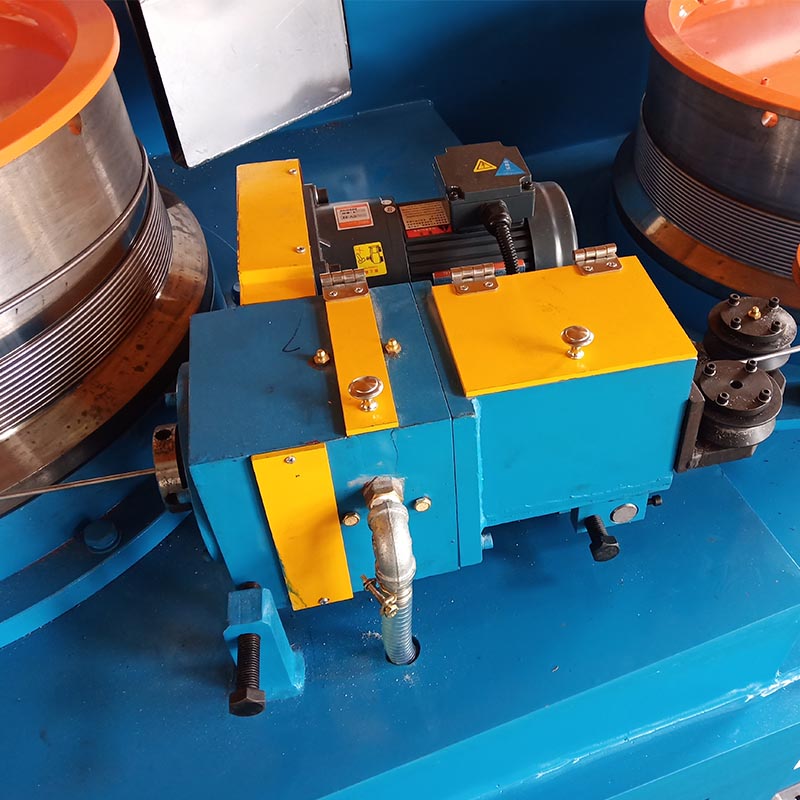

The high carbon steel wire drawing machine is mainly composed of a main machine, a wire feeding device, a wire taking device, a tension control device and a cooling system.
The main machine is the core component of the wire drawing machine, and usually uses a high-speed rotating spindle to drive the steel wire for stretching and deformation.

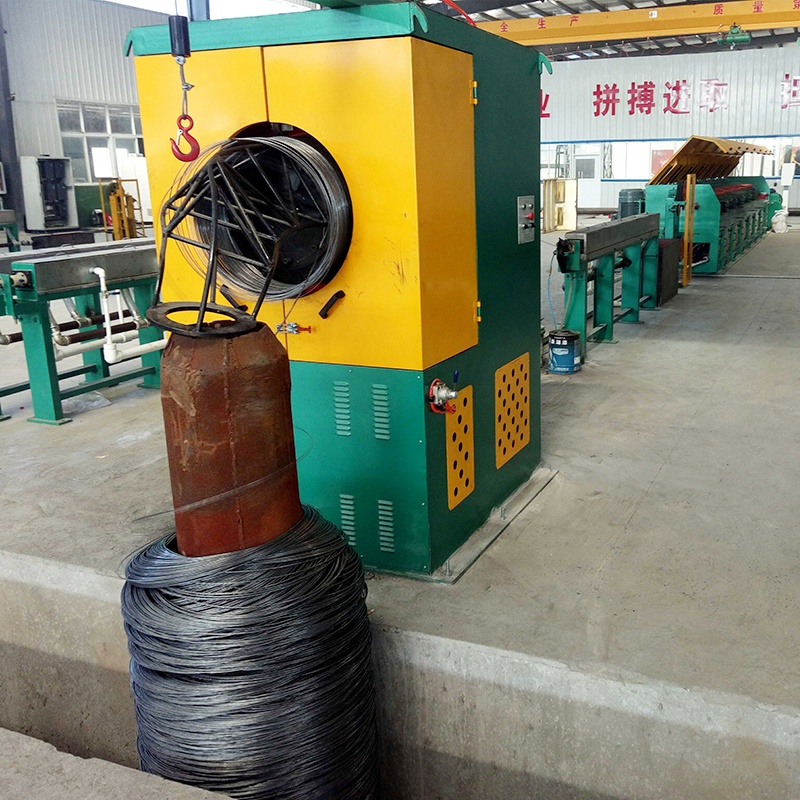

The wire feeding device is used to send the steel wire into the main machine, and the wire take-up device is used to take out the stretched steel wire.
The tension control device is used to adjust the tension of the steel wire to ensure the drawing quality.
The cooling system is used to reduce the temperature of the steel wire during drawing to prevent deformation or breakage of the steel wire.
The working principle of the high-carbon steel wire drawing machine is to drive the main shaft to rotate through the motor so that the steel wire generates a certain tensile force in the main machine.
As the wire continues to stretch, its diameter gradually decreases, and the surface changes accordingly.
By adjusting the tension control device, the drawing speed and tension of the steel wire can be controlled, so as to realize the production of high carbon steel wire rods of different specifications.
Technical Parameter
| Model | LZ400 | LZ500 | LZ560 | LZ600 | LZ700 | LZ900 | LZ1200 |
|---|---|---|---|---|---|---|---|
| Drawing Passes | 7 - 10 | 6 -12 | 6 -12 | 5 -12 | 6 - 9 | 3 - 9 | 6 - 10 |
| Inlet Line Intensity | ≤1250 | ≤1150 | ≤1150 | ≤1150 | ≤1550 | ≤1150 | ≤1150 |
| Max Inlet | ɸ4.2 | ɸ5.5 | ɸ6.5 | ɸ6.5 | ɸ8 | ɸ10 | ɸ14 |
| Min Outlet | ɸ0.7 | ɸ1.2 | ɸ1.35 | ɸ1.4 | ɸ2.5 | ɸ2.8 | ɸ3 |
| Drawing Speed | According to strength of drawing material and customer requirements determine the speed of power | According to strength of drawing material and customer requirements determine the speed of power | According to strength of drawing material and customer requirements determine the speed of power | According to strength of drawing material and customer requirements determine the speed of power | According to strength of drawing material and customer requirements determine the speed of power | According to strength of drawing material and customer requirements determine the speed of power | According to strength of drawing material and customer requirements determine the speed of power |
Advantages Carbon Steel Wire Drawing Machine
The advantages of high carbon steel wire drawing machine are high production efficiency and stable and reliable product quality.
Compared with the traditional manual wire drawing, the machine can produce wires that meet the requirements at a higher speed and more stable quality.
In addition, the machine can also realize automatic production, which greatly reduces the workload of manual operation and the possibility of human error.
