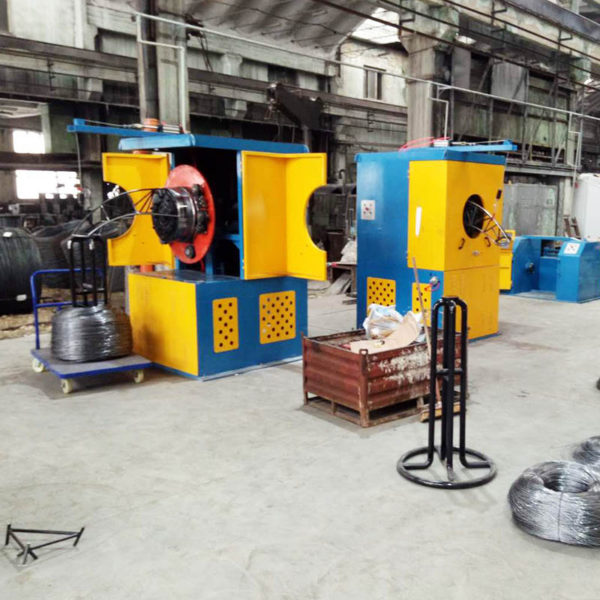

Elephant Trunk-type Wire Take-up Machine
Elephant Trunk-type Wire Take-up Machine
1. The high-efficiency high-speed elephant trunk wire take-up machine produced by YF Metal Tech is a new type of wire unloading machine designed to adapt to drawing high-carbon steel wire and can ensure the flatness of the steel wire, and the large-scale heavy unloading line does not need to stop.
2. Compared with the common elephant trunk unloader, a calibration die is added to increase the straightening and flatness of the steel wire.
Elephant Trunk-type Wire Take-up Machine
The elephant trunk-type wire take-up machine manufactured by YF Metal Tech is used for high, medium, and low carbon steel wire, copper wire, aluminum wire, and other wire rods with low tensile strength.
It is mainly used with straight-in type, pulley type, and water tank type wire drawing machines so that the whole drawing and unloading work can be carried out continuously.
If the elephant trunk-type wire take-up machine receives high-strength steel wire, a calibration die is added, thereby increasing the straightening and flatness of the steel wire.
The wire take-up machine drum adopts water cooling + air cooling, and the calibration dies adopt water cooling, which greatly improves the product quality of steel wire.
Trunk-type Wire Take-up Machine Technical Parameter
Series Number | Item | Unit | Name |
1 | Take-up reel diameter | mm | 450-600 |
2 | Collection (unloading) wire diameter | mm | φ1.4-3.0 |
3 | Collection (unloading) wire diameter | m/min | ≤10m |
4 | Receiving (unloading) wire strength | MPa | 1500-2600 |
5 | Motor Power | kw | 11-45 |
6 | Dimensions | mm | 1500X1550X23 |
7 | Weight | kg | 2500 |
Wire Take-up Machine Features:
Torque/AC frequency conversion control
Dynamic balance
The fixed speed with the wire drawing machine
Heavy Coil Weight
Labor-saving
Take-up Machine Technical Advantages
The high-efficiency high-speed elephant trunk wire take-up machine produced by YF Metal Tech is a new type of wire unloading machine designed to adapt to drawing high-carbon steel wire and can ensure the flatness of the steel wire, and the large-scale heavy unloading line does not need to stop.
Compared with the common elephant trunk unloader, a calibration die is added to increase the straightening and flatness of the steel wire.
The reel of this machine is water-cooled and air-cooled, and the calibration mold is water-cooled, which greatly improves the product quality of the steel wire, and is especially suitable for the take-up of high-strength steel wire after drawing.
This type of wire take-up machine can be used together with a straight wire drawing machine and a heavy water tank-type wire drawing machine.
